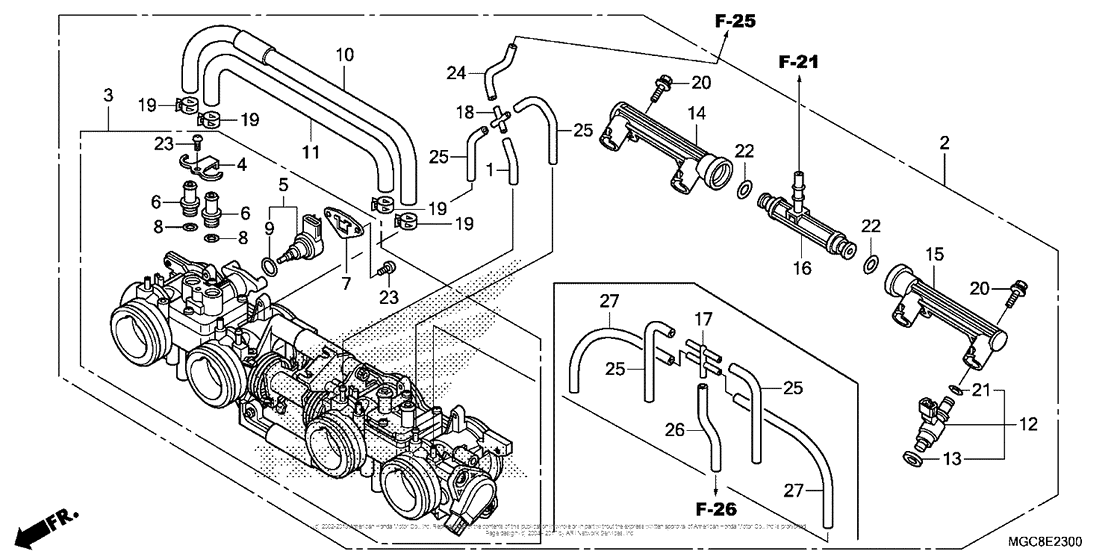

Throttle Body Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16197-MGC-003 New Genuine Part |
16197-MGC-003 |
from US $2.59 |
||
|
2
|
2
16400-MGC-A22 Body assy. (gq8fb a) |
16400-MGC-A22 |
from US $1,768 |
||
|
3
|
3
16401-MGC-A22 Body assy., throttle |
16401-MGC-A22 |
from US $1,215.84 |
||
|
4
|
4
16431-MFJ-D01 Plate, joint |
16431-MFJ-D01 |
from US $5.25 |
||
|
5
|
5
16431-MGZ-D01 Motor Assy |
16431-MGZ-D01 |
from US $121.72 |
||
|
6
|
6
16432-MFG-D01 Joint |
16432-MFG-D01 |
from US $8.73 |
||
|
7
|
7
16433-MEW-921 Plate |
16433-MEW-921 |
from US $9.77 |
||
|
8
|
8
16434-MFJ-D01 O-ring |
16434-MFJ-D01 |
from US $2.89 |
||
|
9
|
9
16435-MFJ-D01 O-ring (17.8x1.9) |
16435-MFJ-D01 |
from US $2.89 |
||
|
10
|
10
16440-MGC-003 New Genuine Part |
16440-MGC-003 |
from US $10.02 |
||
|
11
|
11
16441-MFP-003 Tube |
16441-MFP-003 |
from US $8.58 |
||
|
12
|
12
16450-MGC-D21 Injector assy., fuel |
16450-MGC-D21 |
from US $156.40 |
||
|
13
|
13
16472-KPC-D50 Ring, seal |
16472-KPC-D50 |
from US $2 |
||
|
14
|
14
16610-MGC-D21 Pipe, fuel |
16610-MGC-D21 |
from US $39.72 |
||
|
15
|
15
16620-MGC-D21 Pipe, fuel |
16620-MGC-D21 |
from US $38.35 |
||
|
16
|
16
16630-MGC-003 New Genuine Part |
16630-MGC-003 |
from US $27.32 |
||
|
17
|
17
17201-MCJ-003 Joint (5way) |
17201-MCJ-003 |
from US $8.29 |
||
|
18
|
18
17201-MCZ-003 Joint (4 way) |
17201-MCZ-003 |
from US $7.55 |
||
|
19
|
19
43514-MN9-006 Clamp |
43514-MN9-006 |
from US $8.39 |
||
|
20
|
20
90021-MGZ-D02 Bolt, shoulder |
90021-MGZ-D02 |
from US $2.07 |
||
|
21
|
21
91301-GGL-J01 New Genuine Part |
91301-GGL-J01 |
from US $4.59 |
||
|
22
|
22
91301-PLC-000 O-ring7.47X3.6 |
91301-PLC-000 |
from US $1.80 |
||
|
23
|
23
93500-040-080-H ScrewPAN, 4X8 |
93500-040-080-H |
from US $0.37 |
||
|
24
|
24
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
||
|
25
|
25
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
||
|
26
|
26
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
||
|
27
|
27
95005-350-0120M Bulk hose (3.5x1000) |
95005-350-0120M |
from US $5.70 |
