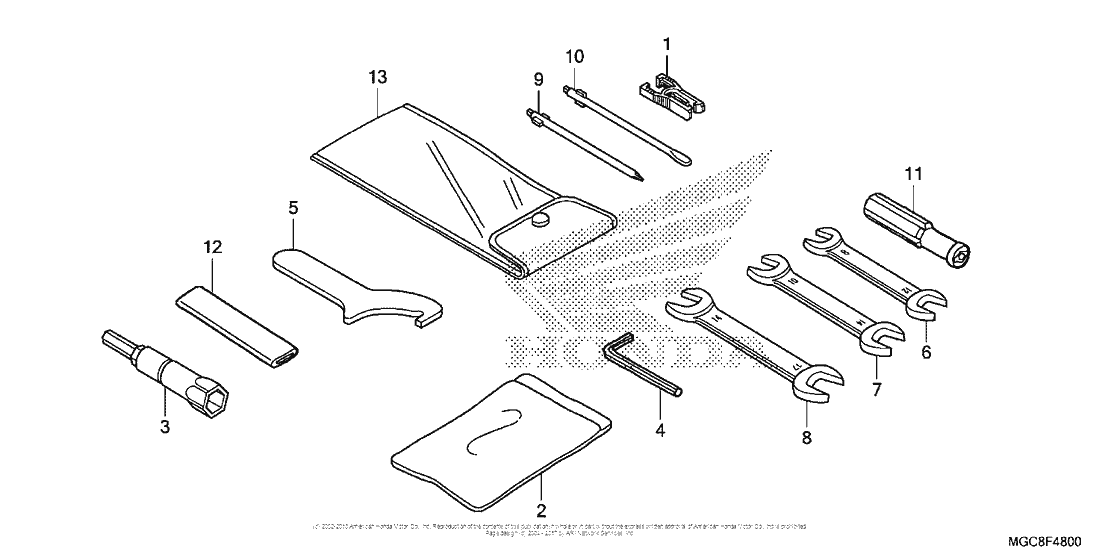

Tool Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38235-S04-003 PullerMINI FUSE (SUMITOMO) |
38235-S04-003 |
from US $1.58 |
||
|
2
|
2
77251-GR1-000 Bag, service book |
77251-GR1-000 |
from US $4.37 |
||
|
3
|
3
89216-KVZ-630 Box wrench,p14 |
89216-KVZ-630 |
from US $12.88 |
||
|
4
|
4
89221-429-000 Wrench, hex. (5mm) |
89221-429-000 |
from US $5.62 |
||
|
5
|
5
89230-MB1-000 Wrench, pin |
89230-MB1-000 |
from US $11.25 |
||
|
6
|
6
9900108120 Spanner, 8x12 |
9900108120 |
from US $3.11 |
||
|
7
|
7
9900110140 Spanner, 10x14 |
9900110140 |
from US $3.55 |
||
|
8
|
8
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
9
|
9
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
10
|
10
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
11
|
11
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
|
12
|
12
99006-12000 Handle (12mm) |
99006-12000 |
from US $4.29 |
||
|
13
|
13
99008-01600 BagTOOL, 160MM |
99008-01600 |
from US $2.29 |
