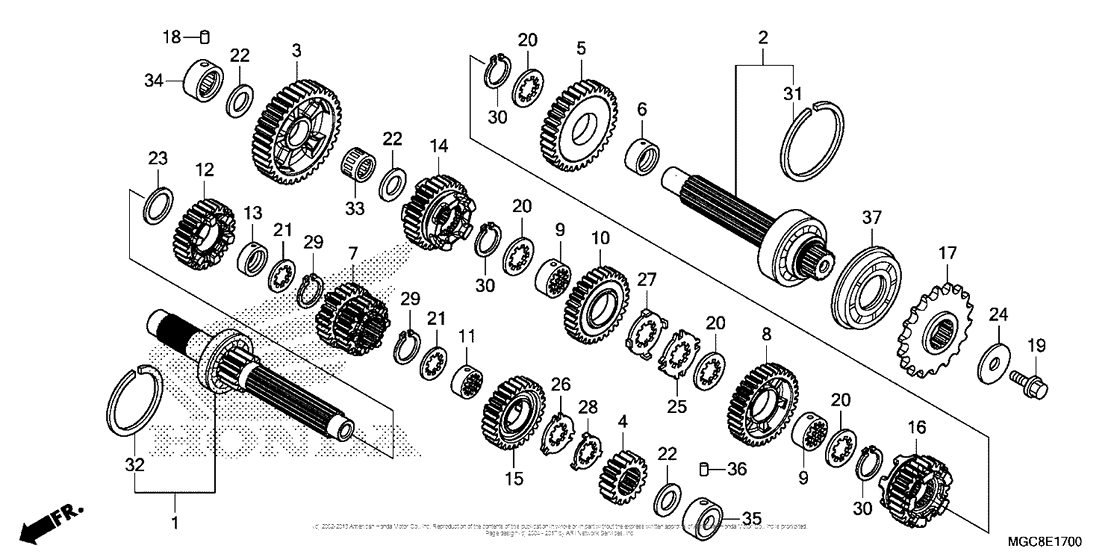

Transmission Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-MGC-JB0 SHAFT COMP, MAIN |
23210-MGC-JB0 |
US $230.01 |
||
|
2
|
2
23220-MGC-JB0 COUNTERSHAFT COMP |
23220-MGC-JB0 |
from US $201.36 |
||
|
3
|
3
23421-MGC-JB0 GEAR (C-1) |
23421-MGC-JB0 |
from US $95.76 |
||
|
4
|
4
23431-MGC-JB0 GEAR (M-2) |
23431-MGC-JB0 |
from US $44.08 |
||
|
5
|
5
23441-MGC-JB0 GEAR (C-2) |
23441-MGC-JB0 |
from US $91.53 |
||
|
6
|
6
23442-MS2-610 Collar (30x11.2) |
23442-MS2-610 |
from US $12.14 |
||
|
7
|
7
23451-MGC-JB0 GEAR (M-3) (M-4) |
23451-MGC-JB0 |
from US $105.60 |
||
|
8
|
8
23461-MGC-JB0 GEAR (C-3) |
23461-MGC-JB0 |
from US $91.53 |
||
|
9
|
9
23462-MAT-000 Colr, spline (30x11) |
23462-MAT-000 |
from US $13.47 |
||
|
10
|
10
23481-MGC-JB0 GEAR (C-4) |
23481-MGC-JB0 |
from US $91.53 |
||
|
11
|
11
23482-MGC-N20 Collar, spline (28x11) |
23482-MGC-N20 |
from US $14.82 |
||
|
12
|
12
23491-MGC-JB0 GEAR (M-5) |
23491-MGC-JB0 |
from US $88.01 |
||
|
13
|
13
23495-MM5-000 Collar (28x13) |
23495-MM5-000 |
from US $13.02 |
||
|
14
|
14
23501-MGC-JB0 GEAR (C-5) |
23501-MGC-JB0 |
from US $97.16 |
||
|
15
|
15
23511-MGC-N20 Gear, mainshaft sixth (28t) |
23511-MGC-N20 |
from US $85 |
||
|
16
|
16
23521-MGC-N20 Gear, countershaft sixth (27t) |
23521-MGC-N20 |
from US $93.84 |
||
|
17
|
17
23801-MGC-JB0 SPROCKET (18T) |
23801-MGC-JB0 |
from US $63.38 |
||
|
18
|
18
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
19
|
19
90037-422-003 Bolt, special (10mm) |
90037-422-003 |
from US $3.62 |
||
|
20
|
20
90452-MAT-000 Washer (30x36x1.5) |
90452-MAT-000 |
from US $2.15 |
||
|
21
|
21
90452-MR7-000 Washer (28x34x1.5) |
90452-MR7-000 |
from US $2.96 |
||
|
22
|
22
90455-ML7-000 Washer b (22mm) |
90455-ML7-000 |
from US $3.27 |
||
|
23
|
23
90458-729-920 Washer, thrust, 28mm |
90458-729-920 |
from US $2.59 |
||
|
24
|
24
90459-438-000 Washer (10.2mm) |
90459-438-000 |
from US $4.59 |
||
|
25
|
25
90463-MAT-000 Washer (30mm) |
90463-MAT-000 |
from US $2.07 |
||
|
26
|
26
90463-MR7-000 Washer (28mm) |
90463-MR7-000 |
from US $6.51 |
||
|
27
|
27
90464-MAT-000 Washer, lock (30mm) |
90464-MAT-000 |
from US $2.95 |
||
|
28
|
28
90464-MR7-000 Washer, lock (28mm) |
90464-MR7-000 |
from US $5.77 |
||
|
29
|
29
90603-MN4-000 Circlip (28mm) |
90603-MN4-000 |
from US $2.59 |
||
|
30
|
30
90604-MM5-000 Circlip (30mm) |
90604-MM5-000 |
from US $3.70 |
||
|
31
|
31
90605-MM5-000 Ring, snap (72mm) |
90605-MM5-000 |
from US $5.33 |
||
|
32
|
32
90606-MM5-000 Ring, snap (62mm) |
90606-MM5-000 |
from US $5.33 |
||
|
33
|
33
91001-MB6-680 Bearing (22x26x13) |
91001-MB6-680 |
from US $10.14 |
||
|
34
|
34
91022-MEJ-003 Brg,needle 22mm |
91022-MEJ-003 |
from US $17.54 |
||
|
35
|
35
91022-MGC-N21 Bearing, needle (22x38x16) |
91022-MGC-N21 |
from US $17.54 |
||
|
36
|
36
91101-MGC-N21 Roller (5x10.8) |
91101-MGC-N21 |
from US $2.29 |
||
|
37
|
37
91207-MAT-003 Oil seal (45x72x8) |
91207-MAT-003 |
from US $7.22 |
