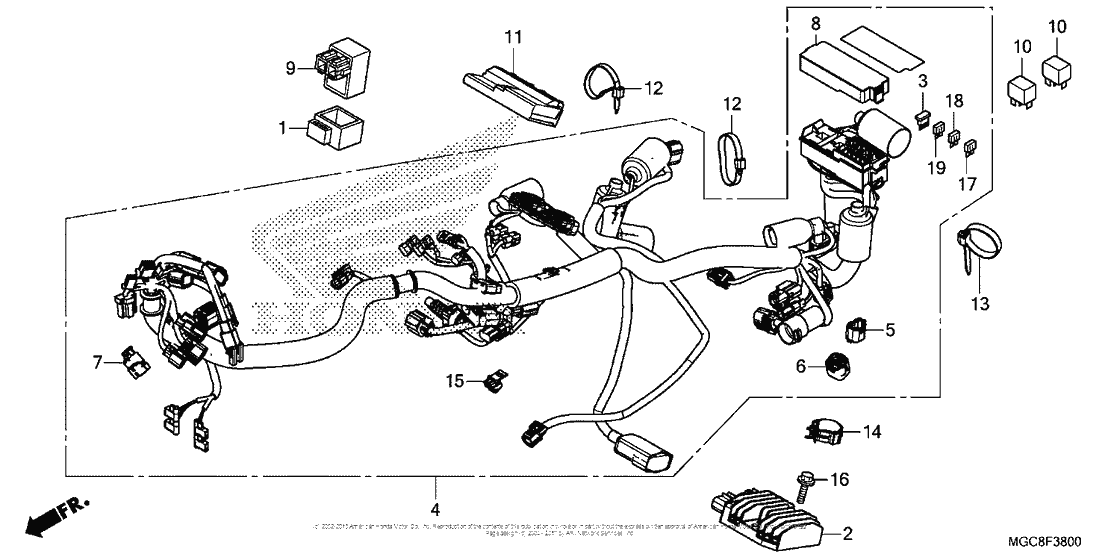

Wire Harness Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100CA AC
- Sales region
- USA
- Frame
- JH2SC651 - HK300001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-GK8-000 Rubber |
30401-GK8-000 |
from US $4 |
||
|
2
|
2
31600-MGZ-J01 Rectifier, regulator |
31600-MGZ-J01 |
from US $222.72 |
||
|
3
|
3
31730-MAS-601 Diode assy., three way (sumitomo) |
31730-MAS-601 |
from US $11.23 |
||
|
4
|
4
32100-MGC-AA0 WIRE HARNESS |
32100-MGC-AA0 |
US $1,116.31 |
||
|
5
|
5
32605-GEV-761 CapDUMMY (WPC 4P 090 M) (NATURAL) |
32605-GEV-761 |
from US $4.29 |
||
|
6
|
6
32606-GEV-761 Cap, dummy (4p) |
32606-GEV-761 |
from US $4.29 |
||
|
7
|
7
32606-KCW-J91 Cap, dummy (2p) |
32606-KCW-J91 |
from US $4.85 |
||
|
8
|
8
38252-MFJ-D01 Cover (upper) |
38252-MFJ-D01 |
from US $9.47 |
||
|
9
|
9
38301-MGC-A21 Relay |
38301-MGC-A21 |
from US $115.60 |
||
|
10
|
10
38501-MEL-003 Relay (micro iso 4p) |
38501-MEL-003 |
from US $5.38 |
||
| replacement | |||||
|
10
|
10
38501-MKP-DN1 RELAY COMP POWER |
38501-MKP-DN1 |
US $7.09 |
||
|
11
|
11
38770-MGC-AA1 UNIT COMP |
38770-MGC-AA1 |
US $905.09 |
||
|
12
|
12
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $2.96 |
||
|
13
|
13
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
14
|
14
90690-GHB-681 Clip, cable (30mm) |
90690-GHB-681 |
from US $1.78 |
||
|
15
|
15
91565-SEL-003 ClipCOUPLER(BLACK) |
91565-SEL-003 |
from US $1.70 |
||
|
16
|
16
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
17
|
17
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
18
|
18
98200-42000 FuseMINI (20A) |
98200-42000 |
from US $0.52 |
||
|
19
|
19
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
||
