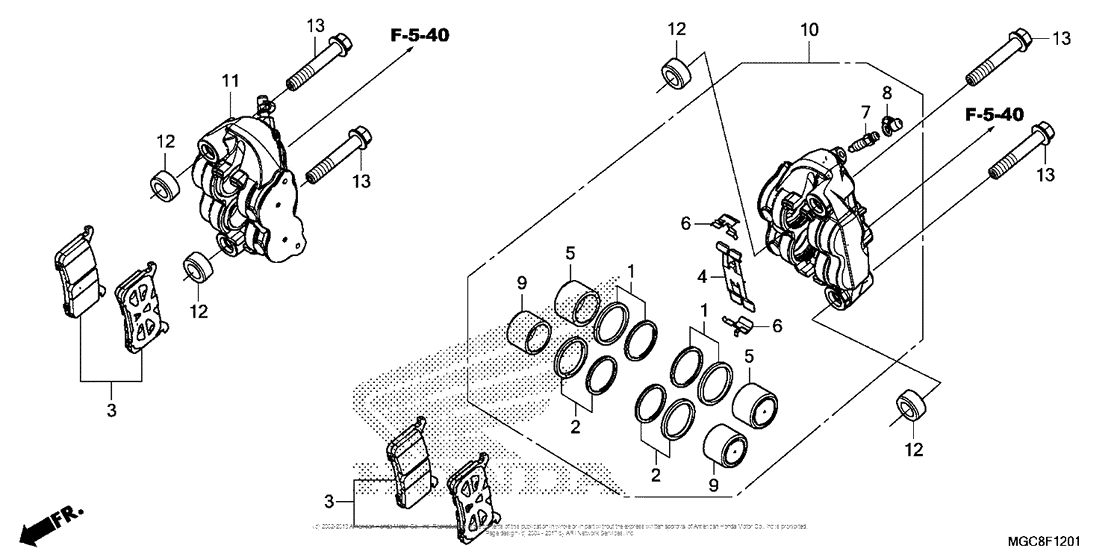

Front Brake Caliper (2) Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100NA AC
- Sales region
- USA
- Frame
- JH2SC658 - HK200001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06451-MEL-003 Seal set (32) |
06451-MEL-003 |
from US $6.07 |
||
|
2
|
2
06452-MEL-003 Seal set (30) |
06452-MEL-003 |
from US $6.07 |
||
|
3
|
3
06455-MJM-D41 Pad Set, Fr. |
06455-MJM-D41 |
from US $67.05 |
||
|
4
|
4
45106-MJM-D31 SPRING, PAD |
45106-MJM-D31 |
US $10.91 |
||
|
5
|
5
45107-MFL-013 Piston (32) |
45107-MFL-013 |
from US $24.07 |
||
|
6
|
6
45108-MJM-D31 RETAINER, PAD |
45108-MJM-D31 |
from US $4 |
||
|
7
|
7
45111-MEL-013 Screw, bleeder |
45111-MEL-013 |
from US $2.52 |
||
|
8
|
8
45112-MEL-003 Cap, bleeder |
45112-MEL-003 |
from US $1.55 |
||
|
9
|
9
45117-MFL-013 Piston (30) |
45117-MFL-013 |
from US $26.52 |
||
|
10
|
10
45150-MGC-JD1 CALIPER SUB-ASSY., L |
45150-MGC-JD1 |
from US $325.26 |
||
|
11
|
11
45250-MGC-JD1 CALIPER SUB-ASSY., R |
45250-MGC-JD1 |
from US $325.26 |
||
|
12
|
12
51497-MEL-000 Spacer, fr. fork |
51497-MEL-000 |
from US $6.51 |
||
|
13
|
13
90131-MEL-000 Bolt, flange (10x57) |
90131-MEL-000 |
from US $15.78 |
