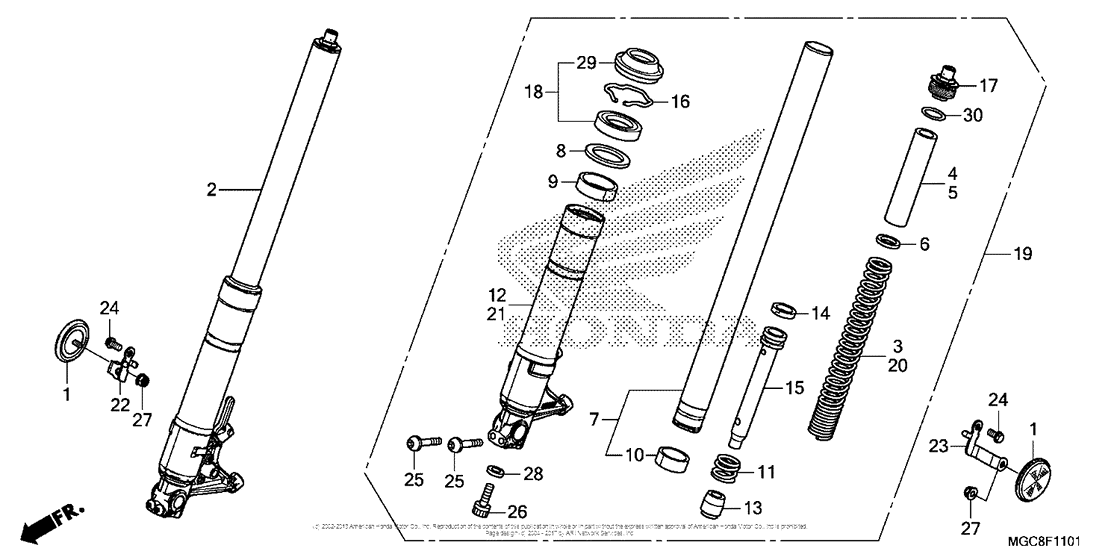

Front Fork (2) Diagram Honda CB1100
- Year
- 2017
- Model code
- CB1100NA AC
- Sales region
- USA
- Frame
- JH2SC658 - HK200001
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-KTG-U01 Reflex refl fr |
33741-KTG-U01 |
from US $7.55 |
||
|
2
|
2
51400-MGC-JD1 FORK ASSY., FR. R |
51400-MGC-JD1 |
from US $628.32 |
||
|
3
|
3
51401-MGC-JD1 SPRING, FR. R FORK |
51401-MGC-JD1 |
from US $39.30 |
||
|
4
|
4
51402-MN8-911 Spring,fr.fork |
51402-MN8-911 |
from US $13.87 |
||
|
5
|
5
51402-MV8-901 Collar, spring |
51402-MV8-901 |
from US $8.58 |
||
|
6
|
6
51405-KA4-711 Seat, spring |
51405-KA4-711 |
from US $3.11 |
||
|
7
|
7
51410-MGC-JD1 PIPE COMP, FR. FORK |
51410-MGC-JD1 |
from US $247.52 |
||
|
8
|
8
51412-KA4-711 Ring, back-up |
51412-KA4-711 |
from US $6.96 |
||
|
9
|
9
51414-MFN-D01 Bush, guide |
51414-MFN-D01 |
from US $6.32 |
||
|
10
|
10
51415-MFN-D01 Bush, slider |
51415-MFN-D01 |
from US $8.29 |
||
|
11
|
11
51416-MFR-671 Spring, fr. rebound |
51416-MFR-671 |
US $10.61 |
||
|
12
|
12
51420-MGC-JD1 CASE COMP, R (LOWER) |
51420-MGC-JD1 |
from US $331.84 |
||
|
13
|
13
51432-MV4-003 Piece, oil lock |
51432-MV4-003 |
from US $10.06 |
||
|
14
|
14
51437-MGC-JD1 RING, PISTON |
51437-MGC-JD1 |
from US $6.96 |
||
|
15
|
15
51440-MGC-JD1 PIPE, SEAT |
51440-MGC-JD1 |
from US $35.09 |
||
|
16
|
16
51447-KA4-711 Ring |
51447-KA4-711 |
from US $3.33 |
||
|
17
|
17
51450-MGC-JD1 BOLT ASSY., FR. FORK |
51450-MGC-JD1 |
from US $42.43 |
||
|
18
|
18
51490-MFL-003 Seal set, fr. fork |
51490-MFL-003 |
from US $19.13 |
||
|
19
|
19
51500-MGC-JD1 FORK ASSY., FR. L |
51500-MGC-JD1 |
from US $628.32 |
||
|
20
|
20
51501-MGC-JD1 SPRING, FR. L FORK |
51501-MGC-JD1 |
from US $51.41 |
||
|
21
|
21
51520-MGC-JD1 CASE COMP, L (LOWER) |
51520-MGC-JD1 |
from US $331.84 |
||
|
22
|
22
61101-MGC-DC0 STAY, FR. |
61101-MGC-DC0 |
US $14.09 |
||
|
23
|
23
61104-MGC-DC0 STAY, FR. |
61104-MGC-DC0 |
US $14.09 |
||
|
24
|
24
90013-GHB-610 BOLT, FLANGE (6X12) |
90013-GHB-610 |
from US $1.92 |
||
|
25
|
25
90109-MBT-611 Bolt, socket (8x45) |
90109-MBT-611 |
from US $3.92 |
||
|
26
|
26
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $4.44 |
||
|
27
|
27
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $2.92 |
||
|
28
|
28
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
29
|
29
91254-MEJ-013 DUST SEAL |
91254-MEJ-013 |
from US $12.88 |
||
|
30
|
30
91356-KA4-711 O-ring (35.2x2.4) |
91356-KA4-711 |
from US $3.77 |
