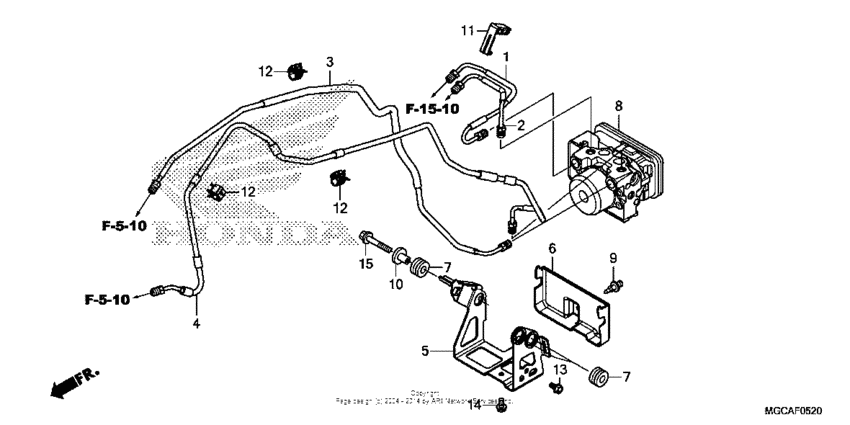

Abs modulator Diagram Honda CB1100
- Year
- 2014
- Model code
- CB1100SA AC
- Sales region
- USA
- Frame
- JH2SC658*EK000001 -
- Engine Capacity
- 1100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43311-MGC-N30 Pipe a, rr. brake |
43311-MGC-N30 |
from US $10.66 |
||
|
2
|
2
43312-MGC-N30 Pipe b, rr. brake |
43312-MGC-N30 |
from US $8.58 |
||
|
3
|
3
45126-MGC-N30 Pipe a, fr. brake |
45126-MGC-N30 |
from US $18.77 |
||
|
4
|
4
45127-MGC-N30 Pipe b, fr. brake |
45127-MGC-N30 |
from US $28.15 |
||
|
5
|
5
50210-MGC-N20 Bracket, modulator |
50210-MGC-N20 |
from US $64.87 |
||
|
6
|
6
50220-MGC-N20 Splash guard, rr |
50220-MGC-N20 |
from US $13.62 |
||
|
7
|
7
50329-HA7-670 Rubber, battery box mounting |
50329-HA7-670 |
from US $1.82 |
||
|
8
|
8
57110-MGC-N31 Modulator assy. (msds) |
57110-MGC-N31 |
from US $1,151.92 |
||
|
9
|
9
90116-SP0-003 ClipBUMPER SEAL |
90116-SP0-003 |
from US $2.07 |
||
|
10
|
10
90551-MG7-000 Collar8.8X11 |
90551-MG7-000 |
from US $3.40 |
||
|
11
|
11
90661-KVK-B11 Clip, brake pipe (6.9x2) |
90661-KVK-B11 |
from US $3.26 |
||
|
12
|
12
90690-GHB-641 Clip, cable, 10mm |
90690-GHB-641 |
from US $1.95 |
||
|
13
|
13
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
14
|
14
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
15
|
15
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
