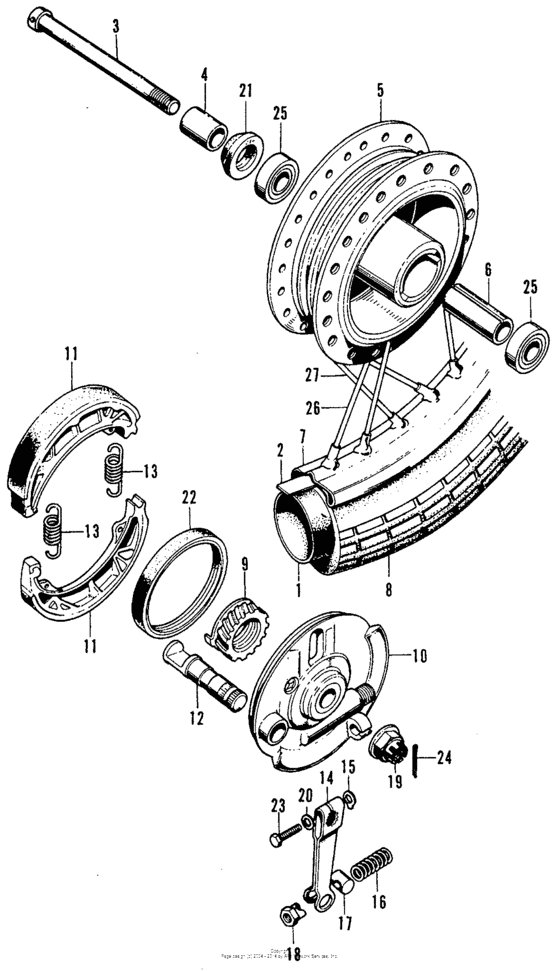

Front wheel s Diagram Honda CB125
- Year
- 1975
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S1021922 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06450-178-932 Shoe set, brake |
06450-178-932 |
from US $33.07 |
||
|
1
|
1
42712-KC6-005
Tube (275/300-18)
|
42712-KC6-005 |
— | ||
|
1
|
1
42712-304-006
Tube,250/275-18
|
42712-304-006 |
— | ||
|
2
|
2
42713-304-003 Flap (1.40/1.60-18) |
42713-304-003 |
US $9.78 |
||
|
2
|
2
42713-304-006
Flap18-20
|
42713-304-006 |
— | ||
|
3
|
3
44301-107-000 Axle,front wheel |
44301-107-000 |
US $14.14 |
||
|
4
|
4
44311-229-000 Colr, fr. wheel side |
44311-229-000 |
from US $4 |
||
|
5
|
5
44601-397-000
Hub, fr. wheel
|
44601-397-000 |
— | ||
|
6
|
6
44620-030-000 Collar, fr |
44620-030-000 |
from US $5.62 |
||
|
7
|
7
44701-028-014
Rim, fr. wheel
|
44701-028-014 |
— | ||
|
8
|
8
44711-330-003
Tire (2.75-18) (4pr)
|
44711-330-003 |
— | ||
|
9
|
9
44804-028-000 Gear,speedometer |
44804-028-000 |
US $22.82 |
||
|
10
|
10
45010-350-000 Panel comp.,front |
45010-350-000 |
US $121.09 |
||
|
11
|
11
45120-001-010
Shoe, brake
|
45120-001-010 |
— | ||
|
12
|
12
45131-030-000 Cam, front brake |
45131-030-000 |
US $11.40 |
||
|
13
|
13
45133-028-000 Spring, brake shoe |
45133-028-000 |
from US $2.15 |
||
|
14
|
14
45410-028-000
Arm, front brake
|
45410-028-000 |
— | ||
|
15
|
15
45436-001-000 Nut, fr. brake arm setting |
45436-001-000 |
from US $2.22 |
||
|
16
|
16
45437-001-000 Spring, fr |
45437-001-000 |
from US $3.02 |
||
|
17
|
17
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
18
|
18
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
||
|
19
|
19
90305-169-000 Nut, axle (12mm) |
90305-169-000 |
from US $4.74 |
||
|
20
|
20
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.78 |
||
|
21
|
21
90755-229-003 Oil seal (21x37x7) |
90755-229-003 |
from US $4.07 |
||
|
22
|
22
91251-030-003 Oil seal, 47x58x7 |
91251-030-003 |
US $10.51 |
||
|
23
|
23
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
24
|
24
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
24
|
24
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
24
|
24
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
25
|
25
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
|
26
|
26
97142-211-871-0 Spoke,a.front |
97142-211-871-0 |
from US $1.68 |
||
| replacement | |||||
|
26
|
26
97142-211-87F-0 Spoke a (12x173.5) |
97142-211-87F-0 |
from US $1.70 |
||
|
27
|
27
97407-211-86F-0 Spoke a (12x173) |
97407-211-86F-0 |
from US $1.70 |
||
|
27
|
27
97407-211-861-0 Spoke,b.front |
97407-211-861-0 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
97407-211-86F-0 Spoke a (12x173) |
97407-211-86F-0 |
from US $1.70 |
||
