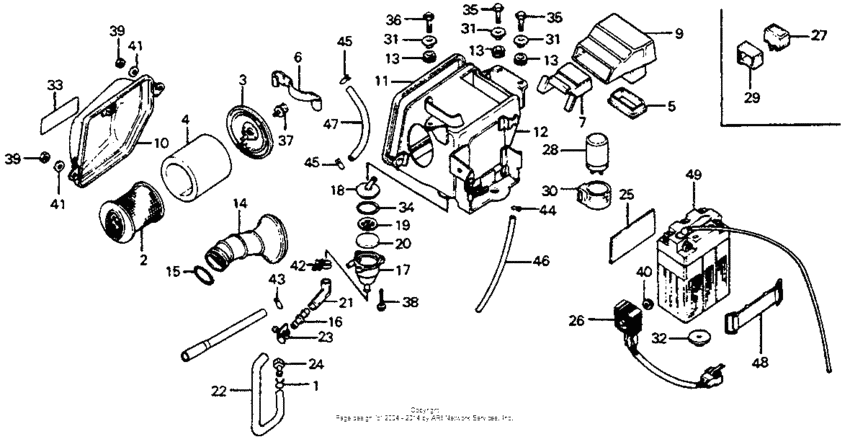

Air cleaner + battery 79 Diagram Honda CB125
- Year
- 1979
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S5000001 - CB125S5002000
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15707-634-000 ClipOIL DRAIN TUBE |
15707-634-000 |
from US $2 |
||
|
2
|
2
17211-382-870
Trap comp.,frame
|
17211-382-870 |
— | ||
|
3
|
3
17212-383-770
Cap,element hold.
|
17212-383-770 |
— | ||
|
4
|
4
17213-383-670 Element,cleaner |
17213-383-670 |
from US $12.21 |
||
|
5
|
5
17217-383-670
Plate b,air duct
|
17217-383-670 |
— | ||
|
6
|
6
17217-385-000 Spg.,element set |
17217-385-000 |
US $14.01 |
||
|
7
|
7
17218-383-670
Plate a,air duct
|
17218-383-670 |
— | ||
|
9
|
9
17219-383-670
Duct,air
|
17219-383-670 |
— | ||
|
10
|
10
17220-383-670 Cover,air cleaner |
17220-383-670 |
US $35.20 |
||
|
11
|
11
17226-383-670 Packing,case |
17226-383-670 |
US $11.99 |
||
|
12
|
12
17230-383-770
Housing, air cleaner
|
17230-383-770 |
— | ||
|
13
|
13
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
14
|
14
17253-383-672
Tube,connecting
|
17253-383-672 |
— | ||
|
15
|
15
17231-051-000 Band a,cleaner |
17231-051-000 |
from US $3.73 |
||
|
16
|
16
17359-419-670 Joint, breather tube |
17359-419-670 |
from US $2.59 |
||
|
17
|
17
17361-419-670 Body |
17361-419-670 |
from US $19.50 |
||
|
18
|
18
17362-383-770
Cap
|
17362-383-770 |
— | ||
|
19
|
19
17363-419-670 Holder, element |
17363-419-670 |
from US $4.29 |
||
|
20
|
20
17364-419-000 Element |
17364-419-000 |
US $4.17 |
||
|
21
|
21
17365-383-770
Tube, vinyl (11x15)
|
17365-383-770 |
— | ||
|
22
|
22
17366-383-770
Tube (8x13)
|
17366-383-770 |
— | ||
|
23
|
23
17369-419-670 Clip, tube (a13.5) |
17369-419-670 |
from US $5.78 |
||
|
24
|
24
17370-419-700 Plug, breather tube |
17370-419-700 |
from US $3.48 |
||
|
25
|
25
31511-107-300 Rubber |
31511-107-300 |
from US $4.74 |
||
|
26
|
26
31700-102-731
Rectifier,silicon
|
31700-102-731 |
— | ||
|
27
|
27
38300-GF0-405 Relay, turn signal (FR-2208)Use up to Frame SN 5002000 |
38300-GF0-405 |
from US $53.72 |
||
|
28
|
28
38300-GF0-405 Relay, turn signal (FR-2208)Use from Frame SN 5002001 |
38300-GF0-405 |
from US $53.72 |
||
|
29
|
29
38306-092-670
Suspension,winker
Use up to Frame SN 5002000 |
38306-092-670 |
— | ||
|
30
|
30
38306-292-000 SuspensionUse from Frame SN 5002001 |
38306-292-000 |
from US $4.07 |
||
|
31
|
31
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
31
|
31
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
31
|
31
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
32
|
32
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.40 |
||
|
33
|
33
87506-340-670 Mark,air cleaner |
87506-340-670 |
US $6.66 |
||
|
34
|
34
91305-419-670 O-ring (47x1.9) |
91305-419-670 |
US $2.67 |
||
|
35
|
35
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
36
|
36
92301-06025-0A Bolt, slot (6x25) |
92301-06025-0A |
from US $0.59 |
||
|
37
|
37
93411-060-120-8 Bolt-washer6X12 |
93411-060-120-8 |
from US $0.52 |
||
|
38
|
38
93891-0402000 Screw-washer (4x20) |
93891-0402000 |
US $0.44 |
||
|
39
|
39
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
40
|
40
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
41
|
41
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
42
|
42
9500201160 Clip, tube (a16) |
9500201160 |
from US $1.41 |
||
|
43
|
43
9500202130 Clip, tube (b12.5) |
9500202130 |
from US $0.52 |
||
|
44
|
44
95002-30000 ClipTUBE (C6) |
95002-30000 |
US $0.37 |
||
|
45
|
45
9500280000 Clip, tube (c12) |
9500280000 |
from US $0.44 |
||
|
46
|
46
95003-080-2010S
*95003-08008-10m
|
95003-080-2010S |
— | ||
|
47
|
47
95005-750-0120M Bulk hose (7.3x1000) |
95005-750-0120M |
from US $11.69 |
||
|
48
|
48
95012-15001 Band, battery |
95012-15001 |
from US $3.63 |
||
|
49
|
49
31500-329-677AH
Battery (6n6-3b)
|
31500-329-677AH |
— | ||
