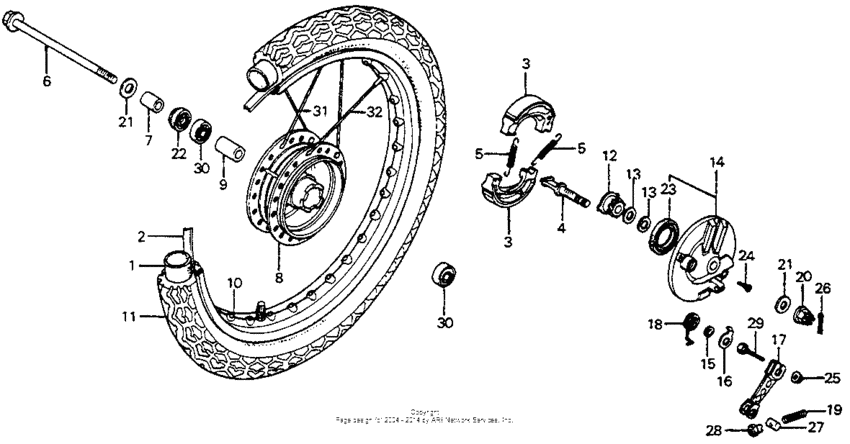

Front wheel 79 Diagram Honda CB125
- Year
- 1979
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S5000001 - CB125S5002000
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06430-GBJ-J10 Shoe set, brake |
06430-GBJ-J10 |
from US $36.72 |
||
|
1
|
1
42712-KC6-005
Tube (275/300-18)
|
42712-KC6-005 |
— | ||
|
1
|
1
42712-304-006
Tube,250/275-18
|
42712-304-006 |
— | ||
|
2
|
2
42713-304-003 Flap (1.40/1.60-18) |
42713-304-003 |
US $9.78 |
||
|
2
|
2
42713-304-006
Flap18-20
|
42713-304-006 |
— | ||
|
3
|
3
06430-GBJ-J10 Shoe set, brake |
06430-GBJ-J10 |
from US $36.72 |
||
|
4
|
4
43141-400-000 Cam,rear brakeUse up to Frame SN 5002104 |
43141-400-000 |
US $23.51 |
||
| replacement | |||||
|
4
|
4
43141-400-010 Cam, rr. brakeUse up to Frame SN 5002104 |
43141-400-010 |
from US $14.80 |
||
|
4
|
4
43141-400-010 Cam, rr. brakeUse up to Frame SN 5002104 |
43141-400-010 |
from US $14.80 |
||
|
5
|
5
43151-110-000 Spring, brake shoe |
43151-110-000 |
from US $2.38 |
||
|
6
|
6
44301-098-010
Axle,fr wheel
|
44301-098-010 |
— | ||
|
7
|
7
44311-229-000 Colr, fr. wheel side |
44311-229-000 |
from US $4 |
||
|
8
|
8
44601-150-000 Hub,front wheel |
44601-150-000 |
US $167.56 |
||
|
9
|
9
44620-400-000 Collar, fr |
44620-400-000 |
from US $6.66 |
||
|
10
|
10
42701-028-023
Rim (2.50.18.4pr)
|
42701-028-023 |
— | ||
|
11
|
11
44711-383-671 Tire, fr. (2.75-18) |
44711-383-671 |
US $74.15 |
||
|
11
|
11
44711-383-672
Tire, fr. (2.75-18) (nitto)
|
44711-383-672 |
— | ||
|
12
|
12
44804-150-003 Gear,speedometer |
44804-150-003 |
US $19.86 |
||
|
13
|
13
44808-107-720 Washer, gear |
44808-107-720 |
from US $2.59 |
||
|
14
|
14
45010-383-880
Sub-panel, fr. brake
|
45010-383-880 |
— | ||
|
15
|
15
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
16
|
16
45145-121-710 Indicator, fr. brake |
45145-121-710 |
from US $3.70 |
||
|
17
|
17
45410-383-880 Arm, fr. brake |
45410-383-880 |
US $12.88 |
||
|
18
|
18
45435-121-010 Spring, fr |
45435-121-010 |
from US $2.70 |
||
|
19
|
19
45437-001-000 Spring, fr |
45437-001-000 |
from US $3.02 |
||
|
20
|
20
90305-169-000 Nut, axle (12mm) |
90305-169-000 |
from US $4.74 |
||
|
21
|
21
90528-229-000 Washer, 12.5mm |
90528-229-000 |
from US $2.87 |
||
|
22
|
22
90755-229-003 Oil seal (21x37x7) |
90755-229-003 |
from US $4.07 |
||
|
23
|
23
91251-GK4-003 Oil seal (47x60x7) |
91251-GK4-003 |
from US $6.81 |
||
|
23
|
23
91251-361-005 Oil seal (47x60x7) |
91251-361-005 |
from US $10.57 |
||
|
24
|
24
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
25
|
25
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
26
|
26
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
26
|
26
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
26
|
26
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
27
|
27
95015-31001 Joint aBRAKE ARM |
95015-31001 |
from US $0.74 |
||
|
28
|
28
9501541000 Nut a, brake rod adjusting |
9501541000 |
from US $0.81 |
||
|
29
|
29
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
29
|
29
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
29
|
29
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
30
|
30
96140-630-101-0
Bearing (6301u)
|
96140-630-101-0 |
— | ||
|
31
|
31
97170-421-841-0 Spoke b (10x172) |
97170-421-841-0 |
US $2 |
||
|
32
|
32
97656-421-831-0 Spoke b (10x171.5) |
97656-421-831-0 |
US $2 |
||
