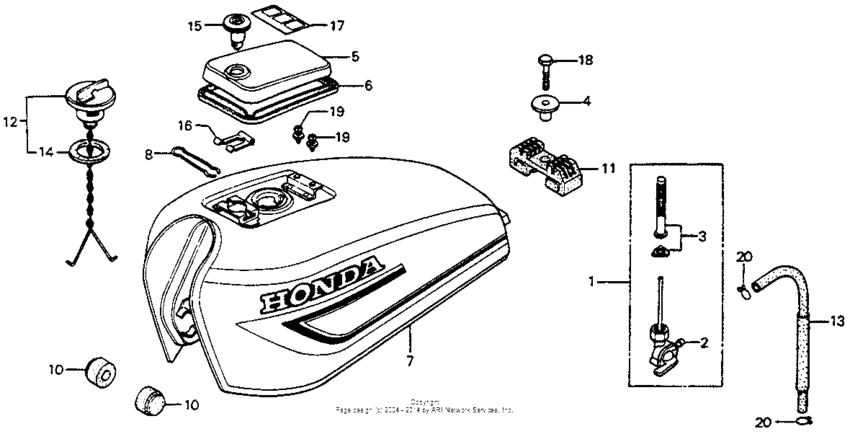

Fuel tank + fuel valve 79 Diagram Honda CB125
- Year
- 1979
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S5000001 - CB125S5002000
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-GF6-015 Cock assy,fuelUse up to Frame SN 5002000 |
16950-GF6-015 |
from US $31.69 |
||
|
2
|
2
16951-GF6-005
Body set, petcock
Use up to Frame SN 5002000 |
16951-GF6-005 |
— | ||
|
3
|
3
16953-155-305
Screen set
Use up to Frame SN 5002000 |
16953-155-305 |
— | ||
|
4
|
4
17508-357-000 Collar,tank set |
17508-357-000 |
US $6.10 |
||
|
5
|
5
17511-383-880ZA
Lid, fuel tank *r25*
|
17511-383-880ZA |
— | ||
|
6
|
6
17518-383-670
Packing,tank lid
|
17518-383-670 |
— | ||
|
7
|
7
17520-383-881ZA
Tk sub, fuel *r25*
|
17520-383-881ZA |
— | ||
|
8
|
8
17526-390-000
Clip, filler lock
|
17526-390-000 |
— | ||
|
10
|
10
17611-331-000 Cushion,fuel tank |
17611-331-000 |
from US $5.77 |
||
|
11
|
11
17613-383-720
Cushion,tank rr.
|
17613-383-720 |
— | ||
|
12
|
12
17620-388-671
Cap,fuel filler
|
17620-388-671 |
— | ||
|
13
|
13
17681-397-000 Tube,fuel |
17681-397-000 |
US $6.07 |
||
|
14
|
14
17682-383-671
Packing,cap
|
17682-383-671 |
— | ||
|
15
|
15
37220-399-703
Lock,filr(type-1)
|
37220-399-703 |
— | ||
|
16
|
16
37221-390-000
Spring, lock set
|
37221-390-000 |
— | ||
|
17
|
17
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $5.77 |
||
|
18
|
18
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
19
|
19
93892-0400600 Screw-washer, 4x6 |
93892-0400600 |
from US $0.44 |
||
|
20
|
20
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
