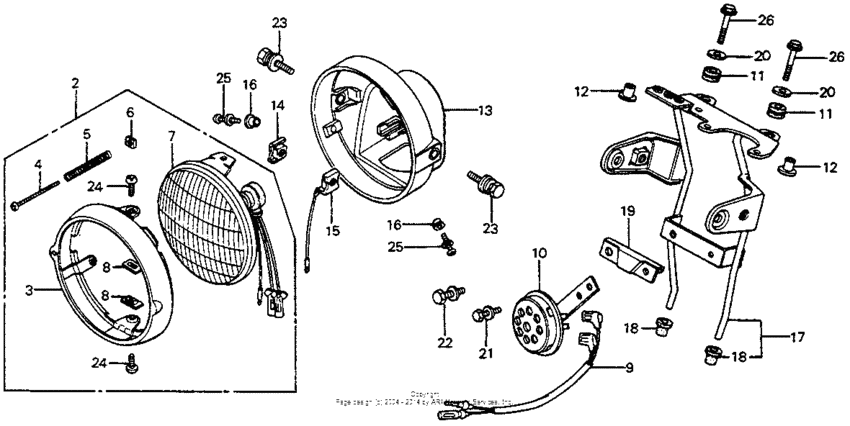

Headlight + horn 79 Diagram Honda CB125
- Year
- 1979
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S5000001 - CB125S5002000
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
33100-428-671
Headlight assy
|
33100-428-671 |
— | ||
|
3
|
3
33101-329-671
Rim,head light
|
33101-329-671 |
— | ||
|
4
|
4
33103-329-003 Screw |
33103-329-003 |
US $3.92 |
||
|
5
|
5
33107-200-023 Spring, beam |
33107-200-023 |
from US $3.03 |
||
|
6
|
6
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
7
|
7
33120-428-671 Headlight unit |
33120-428-671 |
from US $98.86 |
||
|
8
|
8
33128-200-033
Nut, unit holder
|
33128-200-033 |
— | ||
|
9
|
9
38105-312-670
Sub,cord,horn
|
38105-312-670 |
— | ||
|
10
|
10
38110-192-004
Horn
|
38110-192-004 |
— | ||
|
11
|
11
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
12
|
12
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
12
|
12
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
12
|
12
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
13
|
13
61301-399-000ZA Case,hd.lt.*nh-1* |
61301-399-000ZA |
from US $52.90 |
||
|
14
|
14
61303-105-000 Nut,light case |
61303-105-000 |
from US $3.80 |
||
|
15
|
15
61303-159-020 Washer head light |
61303-159-020 |
US $7.99 |
||
|
16
|
16
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
17
|
17
61311-383-880
Brkt, headlight case
|
61311-383-880 |
— | ||
|
18
|
18
61312-149-300 Boot |
61312-149-300 |
from US $2.74 |
||
|
19
|
19
61312-383-720
Cover, horn stay
|
61312-383-720 |
— | ||
|
20
|
20
90563-355-000 Washer, wheel, 6mm |
90563-355-000 |
from US $2.22 |
||
|
21
|
21
93401-0601200 Bolt-washer (6x12) |
93401-0601200 |
from US $0.52 |
||
|
22
|
22
93481-080-120-0 Bolt-washer, 8x12 |
93481-080-120-0 |
US $0.59 |
||
|
23
|
23
93483-080-250-0 Bolt-washer, 8x25 |
93483-080-250-0 |
US $0.81 |
||
|
24
|
24
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
25
|
25
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
26
|
26
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
