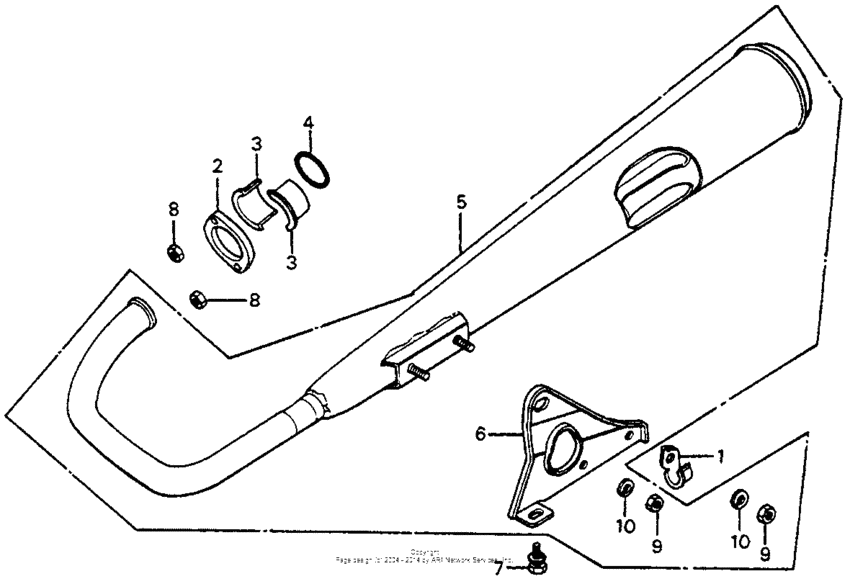

Muffler 79 Diagram Honda CB125
- Year
- 1979
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S5000001 - CB125S5002000
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17367-383-770
Guide b, drain pipe
|
17367-383-770 |
— | ||
|
2
|
2
18231-365-670 Joint,ex pipe |
18231-365-670 |
US $15.64 |
||
|
3
|
3
18233-330-000 Collar,exh.joint |
18233-330-000 |
US $4.44 |
||
|
4
|
4
18291-MN5-650 Gasket, ex. pipe |
18291-MN5-650 |
from US $3.08 |
||
|
5
|
5
18300-383-837
Muffler comp,ex.
|
18300-383-837 |
— | ||
|
6
|
6
18353-383-830ZA
Brkt,muff.*nh-1*
|
18353-383-830ZA |
— | ||
|
7
|
7
93412-0801600 Bolt-washer (8x16) |
93412-0801600 |
from US $0.80 |
||
|
8
|
8
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
9
|
9
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
10
|
10
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
