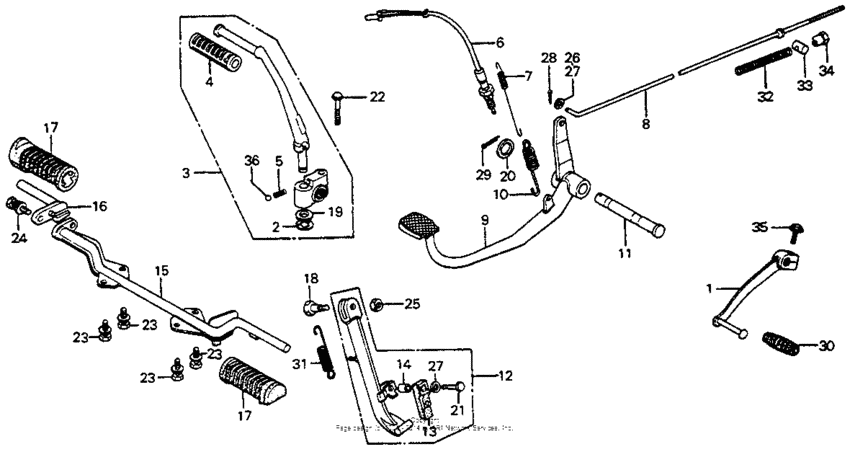

Pedal + kick arm + stand 79 Diagram Honda CB125
- Year
- 1979
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S5000001 - CB125S5002000
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-149-000
Pedal,gear change
|
24701-149-000 |
— | ||
|
2
|
2
28293-333-000 Clip |
28293-333-000 |
from US $2.66 |
||
|
3
|
3
28300-399-010
Arm kick starter
|
28300-399-010 |
— | ||
|
4
|
4
28311-342-000 Rubber,starter |
28311-342-000 |
from US $3.26 |
||
|
5
|
5
28333-124-000 Spring |
28333-124-000 |
from US $2.44 |
||
|
6
|
6
35350-KJ9-405 Switch assy.,rr.s |
35350-KJ9-405 |
from US $17 |
||
|
7
|
7
35357-107-010 Spring, stop switch |
35357-107-010 |
from US $3.54 |
||
|
8
|
8
43451-397-000 Rod,rr.brake |
43451-397-000 |
from US $6.81 |
||
|
9
|
9
46500-383-720
Pedal,brake
|
46500-383-720 |
— | ||
|
10
|
10
46514-107-010 Spring,brake peda |
46514-107-010 |
from US $5.28 |
||
|
11
|
11
50526-383-670 Shaft,stand pivot |
50526-383-670 |
US $10.80 |
||
|
12
|
12
50540-324-760-B
Bar,side stand
|
50540-324-760-B |
— | ||
|
13
|
13
50548-324-760 Rubber, stand |
50548-324-760 |
from US $7.40 |
||
|
14
|
14
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
15
|
15
50610-383-880ZA
Bar,step *nh-1*
|
50610-383-880ZA |
— | ||
|
16
|
16
50615-383-720ZA
Arm,step*nh-1*
|
50615-383-720ZA |
— | ||
|
17
|
17
50661-383-670 Rubber, step |
50661-383-670 |
US $12.74 |
||
|
18
|
18
90108-223-000 Bolt |
90108-223-000 |
from US $5.33 |
||
|
19
|
19
90505-116-670 Washer, 13x20 |
90505-116-670 |
from US $2.89 |
||
|
20
|
20
90521-028-000 Washer, 17x22 |
90521-028-000 |
from US $2.53 |
||
|
21
|
21
92101-06028-0A Bolt, hex. (6x28) |
92101-06028-0A |
from US $0.51 |
||
|
22
|
22
92101-06032-0A Bolt, hex. (6x32) |
92101-06032-0A |
from US $0.52 |
||
|
23
|
23
93402-0802000 Bolt-washer (8x20) |
93402-0802000 |
from US $0.67 |
||
|
24
|
24
93483-100-200-0 Bolt-washer,10x20 |
93483-100-200-0 |
US $0.81 |
||
|
25
|
25
94002-100-000-S NutHEX., 10MM |
94002-100-000-S |
from US $0.55 |
||
|
26
|
26
94101-05000 WasherPLAIN, 5MM Use from Frame SN 5002001 |
94101-05000 |
from US $0.37 |
||
|
27
|
27
94101-06800 WasherPLAIN, 6MM Use up to Frame SN 5002000 |
94101-06800 |
from US $0.37 |
||
|
28
|
28
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
29
|
29
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
29
|
29
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
29
|
29
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
30
|
30
9501140000 Rubber, shift pedal |
9501140000 |
from US $0.74 |
||
|
31
|
31
9501472102 Spring a, side stand |
9501472102 |
from US $1.08 |
||
|
32
|
32
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
33
|
33
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
34
|
34
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
35
|
35
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
36
|
36
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
