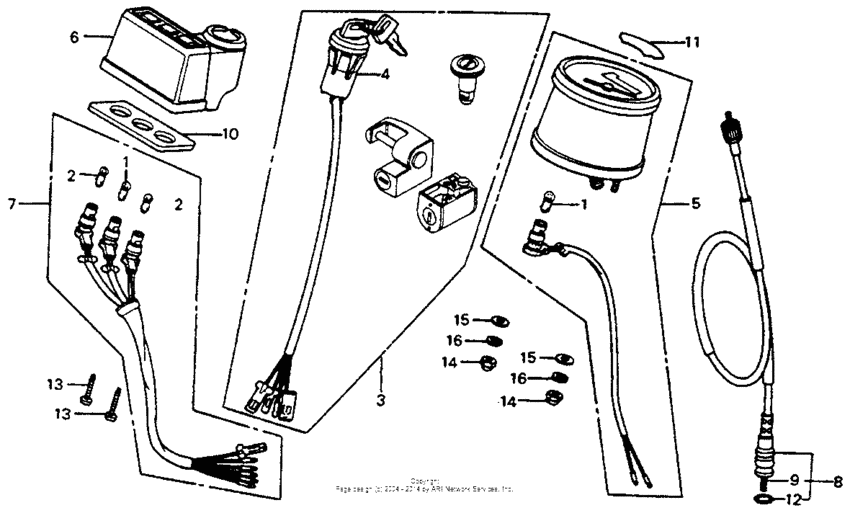

Speedometer + key set 79 Diagram Honda CB125
- Year
- 1979
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S5000001 - CB125S5002000
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34902-202-000 Bulb, dash (6v 3w) |
34902-202-000 |
from US $2.29 |
||
|
2
|
2
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $2.74 |
||
|
3
|
3
35010-383-882
Key set a
Use up to Frame SN 5000010 |
35010-383-882 |
— | ||
|
4
|
4
35100-383-882
Swich,combination
Use up to Frame SN 5000010 |
35100-383-882 |
— | ||
|
5
|
5
37200-383-881
Speedometer assy
|
37200-383-881 |
— | ||
|
6
|
6
37310-383-881
Case, pilot
|
37310-383-881 |
— | ||
|
7
|
7
37311-383-880
Wire, pilot
|
37311-383-880 |
— | ||
|
8
|
8
44830-KB2-000
Cable assy.,spdmt
|
44830-KB2-000 |
— | ||
|
9
|
9
44831-KB2-300
Cable (inner)
|
44831-KB2-300 |
— | ||
|
10
|
10
61313-383-880
Mount,pilot case
|
61313-383-880 |
— | ||
|
11
|
11
87523-413-710
Label
|
87523-413-710 |
— | ||
|
12
|
12
91351-121-710 O-ring |
91351-121-710 |
US $2.07 |
||
|
13
|
13
93901-34480 ScrewTAPPING, 4X16 |
93901-34480 |
from US $0.37 |
||
|
14
|
14
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
15
|
15
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
16
|
16
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
