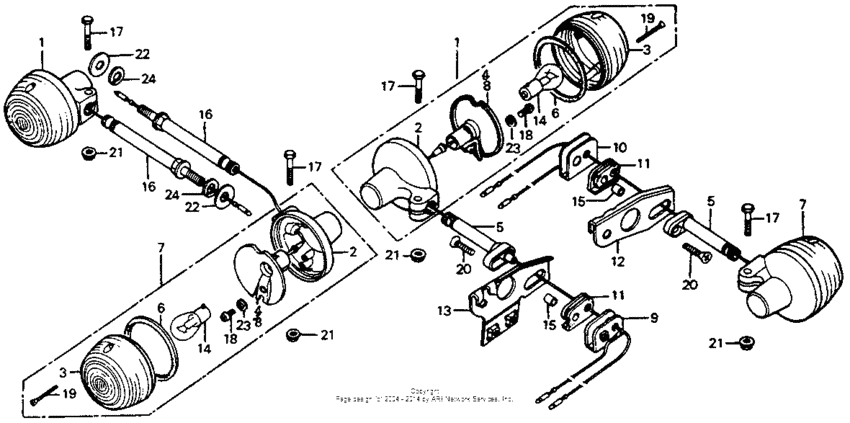

Turn signal 79 Diagram Honda CB125
- Year
- 1979
- Model code
- CB125S A
- Sales region
- USA
- Frame
- CB125S5000001 - CB125S5002000
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-436-679
Winker assy 74ie
|
33400-436-679 |
— | ||
|
2
|
2
33401-341-701 Base,winker |
33401-341-701 |
from US $40.94 |
||
|
3
|
3
33402-268-672 Lens,winker |
33402-268-672 |
from US $10.66 |
||
|
4
|
4
33410-056-671
Socket r fr wink
|
33410-056-671 |
— | ||
|
5
|
5
33441-369-000
Stay,rear winker
|
33441-369-000 |
— | ||
|
6
|
6
33443-268-671 Packing,lens |
33443-268-671 |
from US $2.44 |
||
|
7
|
7
33400-436-679
Winker assy 74ie
|
33400-436-679 |
— | ||
|
8
|
8
33460-056-671
Socket, l.
|
33460-056-671 |
— | ||
|
9
|
9
33604-324-670
Stopper,r.winker
|
33604-324-670 |
— | ||
|
10
|
10
33605-324-670
Stopper,l.winker
|
33605-324-670 |
— | ||
|
11
|
11
33606-074-010 Mount rumber |
33606-074-010 |
from US $5.18 |
||
|
12
|
12
33620-383-880
Bracket, l. rr.
|
33620-383-880 |
— | ||
|
13
|
13
33630-383-880
Bracket, r. rr.
|
33630-383-880 |
— | ||
|
14
|
14
34905-358-003 Bulb, winker lt. |
34905-358-003 |
from US $3.40 |
||
|
15
|
15
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
16
|
16
90154-413-013
Bolt,fr.winker
|
90154-413-013 |
— | ||
|
17
|
17
93101-060-280-B Bolt,hex.,6x28 |
93101-060-280-B |
from US $0.67 |
||
|
18
|
18
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
19
|
19
93700-030-250-B Screw cross 3x25 |
93700-030-250-B |
from US $0.55 |
||
|
20
|
20
93700-060250A Screw, oval, 6x25 |
93700-060250A |
from US $0.58 |
||
|
21
|
21
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
22
|
22
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
23
|
23
94111-05800 WasherSPRING, 5MM |
94111-05800 |
from US $0.37 |
||
|
24
|
24
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
