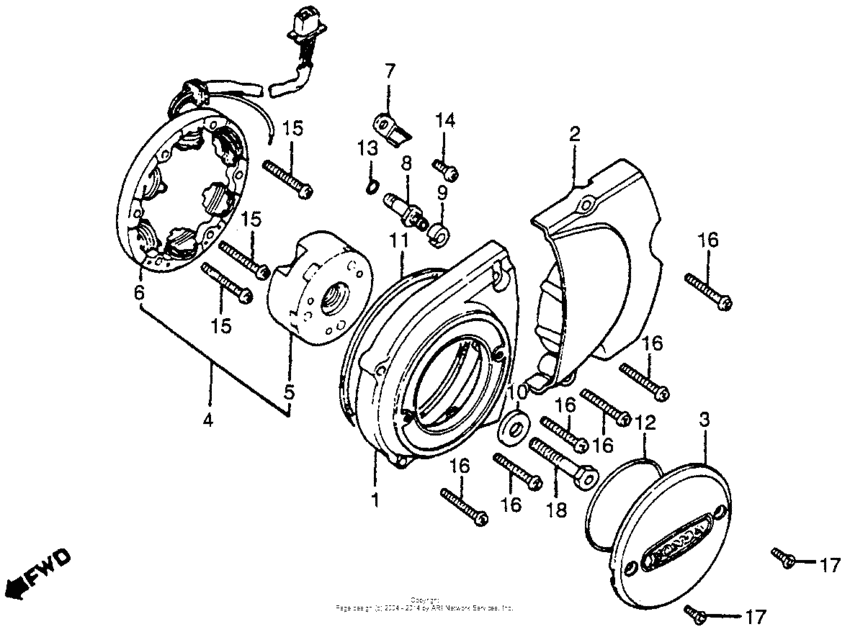

Left crankcase cover + alternator 80 Diagram Honda CB125
- Year
- 1980
- Model code
- CB125S A
- Sales region
- USA
- Frame
- JC045100001 - JC045107666
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-324-000
Cover, l. crankcase
|
11341-324-000 |
— | ||
|
2
|
2
11361-383-000
Cover, l. rr.
|
11361-383-000 |
— | ||
|
3
|
3
11431-383-870
Cover, alternator
|
11431-383-870 |
— | ||
|
4
|
4
31100-383-871 Alternator assy. |
31100-383-871 |
US $213.11 |
||
|
5
|
5
31110-383-871
Rotor, alternator
|
31110-383-871 |
— | ||
|
6
|
6
31120-383-871
Stator,a.c.g.
|
31120-383-871 |
— | ||
|
7
|
7
32976-107-010 Clamp, wire harness |
32976-107-010 |
from US $2.79 |
||
|
8
|
8
35750-001-020 Contact assy. |
35750-001-020 |
from US $5.77 |
||
|
9
|
9
35752-KCT-690 Spacer |
35752-KCT-690 |
from US $2.89 |
||
|
10
|
10
90426-355-000 Washer, rotor setting |
90426-355-000 |
from US $4.74 |
||
|
11
|
11
91302-355-000 Gasket, l |
91302-355-000 |
from US $10.36 |
||
|
12
|
12
91309-302-000 O-ring (70x2.4) |
91309-302-000 |
from US $6.96 |
||
|
13
|
13
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $2.37 |
||
|
14
|
14
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.44 |
||
|
15
|
15
93500-060280A Screw, pan, 6x28 |
93500-060280A |
from US $0.52 |
||
|
16
|
16
93500-060-320-A ScrewPAN, 6X32 |
93500-060-320-A |
from US $0.58 |
||
|
17
|
17
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
18
|
18
95015-11100 Bolt,a1,rotor |
95015-11100 |
US $1.48 |
