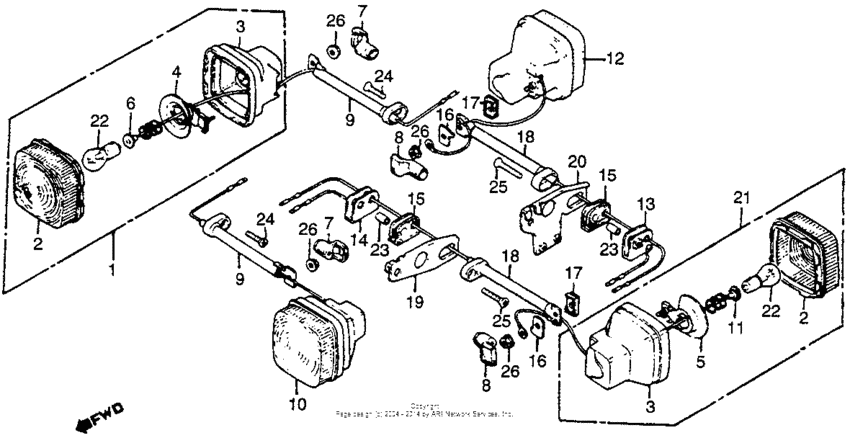

Turn signal 80 Diagram Honda CB125
- Year
- 1980
- Model code
- CB125S A
- Sales region
- USA
- Frame
- JC045100001 - JC045107666
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-147-979
Turn signal, r. fr.
|
33400-147-979 |
— | ||
|
2
|
2
33402-166-003 Lens,winker |
33402-166-003 |
from US $8.10 |
||
|
3
|
3
33403-166-003
Base,winker
|
33403-166-003 |
— | ||
|
4
|
4
33404-147-971
Reflector
|
33404-147-971 |
— | ||
|
5
|
5
33404-195-670
Reflector
|
33404-195-670 |
— | ||
|
6
|
6
33410-166-013
Cord,r.winker
|
33410-166-013 |
— | ||
|
7
|
7
33425-147-970 Cover,winker stay |
33425-147-970 |
US $6.96 |
||
|
8
|
8
33425-195-671
Cover
|
33425-195-671 |
— | ||
|
9
|
9
33441-126-770
Stay, fr.
|
33441-126-770 |
— | ||
|
10
|
10
33400-147-979
Turn signal, r. fr.
|
33400-147-979 |
— | ||
|
11
|
11
33460-166-013
Cord,l.winker
|
33460-166-013 |
— | ||
|
12
|
12
33400-459-679
Winker assy.
|
33400-459-679 |
— | ||
|
13
|
13
33604-195-670 Stopper, r. rr. |
33604-195-670 |
US $14.86 |
||
|
14
|
14
33605-195-670
Stopper, l. rr.
|
33605-195-670 |
— | ||
|
15
|
15
33606-074-010 Mount rumber |
33606-074-010 |
from US $5.18 |
||
|
16
|
16
33611-195-670
Wash,rr.winker mt
|
33611-195-670 |
— | ||
|
17
|
17
33612-195-671
Rub.,rr.win.mount
|
33612-195-671 |
— | ||
|
18
|
18
33615-195-671 Stay,rr.winker |
33615-195-671 |
US $40.49 |
||
|
18
|
18
33615-195-770 Stay,rr.winker |
33615-195-770 |
US $38.49 |
||
|
19
|
19
33620-383-880
Bracket, l. rr.
|
33620-383-880 |
— | ||
|
20
|
20
33630-383-880
Bracket, r. rr.
|
33630-383-880 |
— | ||
|
21
|
21
33400-459-679
Winker assy.
|
33400-459-679 |
— | ||
|
22
|
22
34905-358-003 Bulb, winker lt. |
34905-358-003 |
from US $3.40 |
||
|
23
|
23
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
24
|
24
93700-060-160-A Screw,oval,6x16 |
93700-060-160-A |
from US $0.44 |
||
|
25
|
25
93700-060250A Screw, oval, 6x25 |
93700-060250A |
from US $0.58 |
||
|
26
|
26
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
