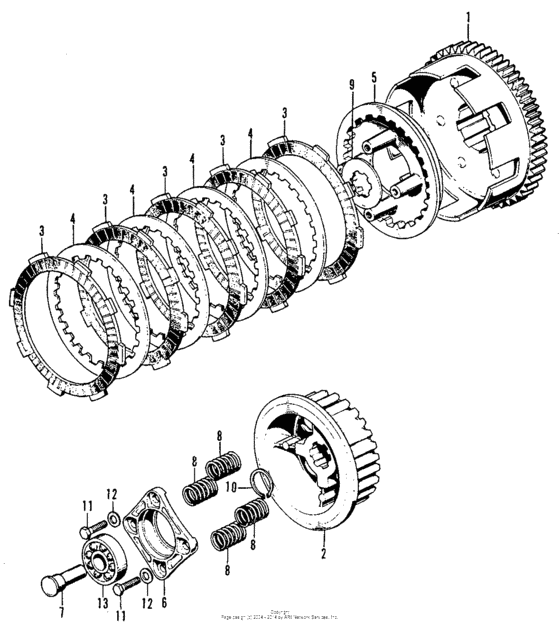

Clutch Diagram Honda CB125
- Model code
- CB125S2 A
- Sales region
- USA
- Frame
- CB125S1200001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-324-505
Clutch outer
|
22100-324-505 |
— | ||
|
2
|
2
22121-KCS-650 Center, clutch |
22121-KCS-650 |
from US $39.58 |
||
|
3
|
3
22201-166-000 Disk, clutch friction |
22201-166-000 |
from US $10.71 |
||
|
4
|
4
22311-KN4-680 Plate, clutch |
22311-KN4-680 |
from US $6.96 |
||
|
5
|
5
22350-107-000 Plate, clutch press |
22350-107-000 |
from US $25.70 |
||
|
5
|
5
22350-107-010 Plate, clu press |
22350-107-010 |
from US $21.22 |
||
|
6
|
6
22361-107-000 Plate, clutch lifter |
22361-107-000 |
from US $13.32 |
||
|
7
|
7
22366-107-700
Pin,guide lifter
|
22366-107-700 |
— | ||
|
8
|
8
95014-75110 Spring,11,clutch |
95014-75110 |
from US $1.48 |
||
|
9
|
9
90461-107-000 Washer b, spline, 20mm |
90461-107-000 |
from US $4.23 |
||
|
10
|
10
90605-200-000 Set-ring (20mm) |
90605-200-000 |
from US $3.11 |
||
|
11
|
11
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
12
|
12
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
13
|
13
96100-600-100-0 Bearing, radial ball, 6001 |
96100-600-100-0 |
from US $5.77 |
