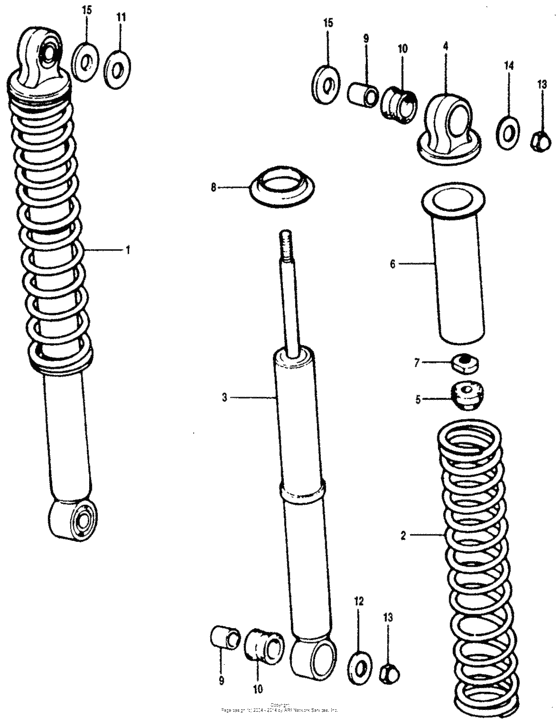

Rear shock absorber s2 Diagram Honda CB125
- Model code
- CB125S2 A
- Sales region
- USA
- Frame
- CB125S1200001 -
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-324-761
Shock absorber, rr.
|
52400-324-761 |
— | ||
|
2
|
2
52407-324-013
Spring,rr.cushion
|
52407-324-013 |
— | ||
|
3
|
3
52430-324-762
Damper, rr.
|
52430-324-762 |
— | ||
|
4
|
4
52462-131-003 Metal,rr.cush.up. |
52462-131-003 |
US $21.13 |
||
|
5
|
5
52475-031-010
Rubber,cushion
|
52475-031-010 |
— | ||
|
6
|
6
52476-118-770
Guide, rr.
|
52476-118-770 |
— | ||
|
7
|
7
52481-031-010
Nut,rear cushion
|
52481-031-010 |
— | ||
|
8
|
8
52485-131-003 Seat,cush.spring |
52485-131-003 |
US $9.39 |
||
|
9
|
9
52486-056-000 Collar, rr. |
52486-056-000 |
from US $2.15 |
||
|
10
|
10
52489-056-000 Bush,rear cushion |
52489-056-000 |
from US $2.15 |
||
|
11
|
11
90526-035-000 Washer, 12.2x26 |
90526-035-000 |
US $2.89 |
||
|
12
|
12
90527-230-000 Washer, plain, 10.3mm |
90527-230-000 |
from US $2.87 |
||
|
13
|
13
94021-100200S Nut, cap (10mm) |
94021-100200S |
from US $0.89 |
||
|
14
|
14
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
15
|
15
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
