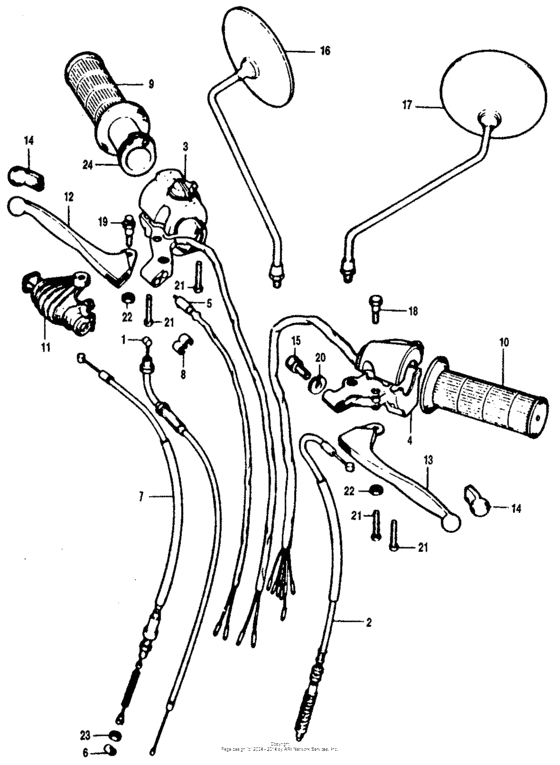

Switches + cables s2 Diagram Honda CB125
- Model code
- CB125S2 A
- Sales region
- USA
- Frame
- CB125S1200001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-324-760
Cable,throttle
|
17910-324-760 |
— | ||
|
2
|
2
22870-402-000 Cable comp,clutch |
22870-402-000 |
US $28.70 |
||
|
3
|
3
35150-324-761
Switch,lighting
|
35150-324-761 |
— | ||
|
4
|
4
35200-383-670
Switchassy,winker
|
35200-383-670 |
— | ||
|
5
|
5
35340-GAN-620 Switch assy.,fr.s |
35340-GAN-620 |
from US $14.42 |
||
|
6
|
6
45355-107-720
Pin,cable end
|
45355-107-720 |
— | ||
|
7
|
7
45450-397-720
Cable fr.brake
|
45450-397-720 |
— | ||
|
8
|
8
45465-270-000 Clip, brake wire |
45465-270-000 |
from US $6.53 |
||
|
9
|
9
53165-342-670 Rubber,r grip |
53165-342-670 |
from US $19.07 |
||
|
10
|
10
53166-342-670 Rubber,l grip |
53166-342-670 |
from US $16.46 |
||
|
11
|
11
53171-351-000
Cover,r.handle
|
53171-351-000 |
— | ||
|
12
|
12
53175-KY0-980 Lever, r. handlebar |
53175-KY0-980 |
from US $25.98 |
||
|
13
|
13
53178-369-700 Lever,strg.handle |
53178-369-700 |
from US $20.94 |
||
|
14
|
14
95010-16001 Cap.handle.lever |
95010-16001 |
from US $2.07 |
||
|
15
|
15
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
16
|
16
88110-329-730
Mirror,r-back
|
88110-329-730 |
— | ||
|
17
|
17
88220-329-730
Mirror, l.
|
88220-329-730 |
— | ||
|
18
|
18
90114-028-000 Screw, pivot |
90114-028-000 |
from US $6.36 |
||
|
19
|
19
90136-107-720
Bolt,handle lever
|
90136-107-720 |
— | ||
|
20
|
20
90321-315-670 Nut, fixing |
90321-315-670 |
from US $5.83 |
||
|
21
|
21
93500-050-250-A ScrewPAN, 5X25 |
93500-050-250-A |
from US $0.44 |
||
|
22
|
22
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
23
|
23
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
24
|
24
95014-51100 Pipe a,grip |
95014-51100 |
from US $5.59 |
