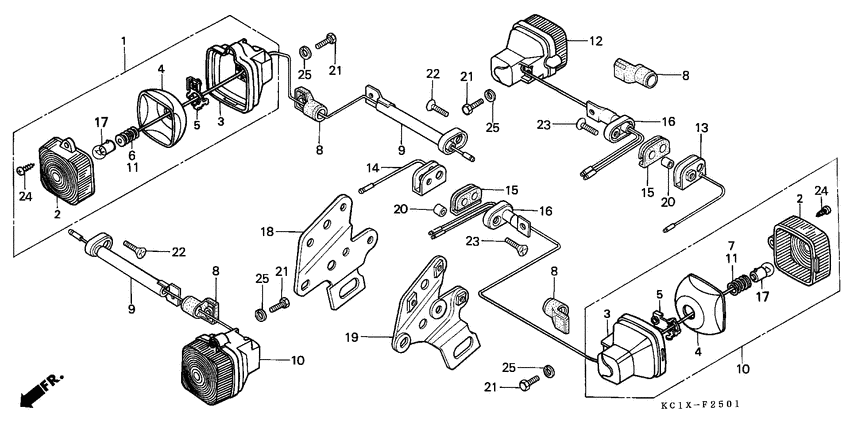

Winker (2) Diagram Honda CB125
- Year
- 1982
- Model code
- CB125TDC
- Sales region
- Total (km / h)
- Frame
- JC065006966 - JC065013380
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-KC1-000
Winker assy,r.fr.
|
33400-KC1-000 |
— | ||
|
2
|
2
33402-195-013 Lens,winker |
33402-195-013 |
US $7.55 |
||
| replacement | |||||
|
2
|
2
33402-195-023 Lens, turn signal |
33402-195-023 |
from US $4.46 |
||
|
3
|
3
33403-195-003
Base,winker
|
33403-195-003 |
— | ||
| replacement | |||||
|
3
|
3
33403-195-013 Base,winker |
33403-195-013 |
US $18.90 |
||
|
4
|
4
33404-GC5-621
Reflector,winker
|
33404-GC5-621 |
— | ||
|
5
|
5
33405-174-771 Soket comp. |
33405-174-771 |
US $4 |
||
|
6
|
6
33410-166-013
Cord,r.winker
|
33410-166-013 |
— | ||
|
7
|
7
33410-167-013
Cord,r.winker
|
33410-167-013 |
— | ||
| replacement | |||||
|
7
|
7
33410-KB9-000
Cord,r,winker
|
33410-KB9-000 |
— | ||
|
8
|
8
33425-174-770 Cover,winker stay |
33425-174-770 |
from US $4.37 |
||
|
9
|
9
33441-465-710
Stay,fr.winker
|
33441-465-710 |
— | ||
|
10
|
10
33450-KC1-000
Winker assy,l.fr.
|
33450-KC1-000 |
— | ||
|
11
|
11
33460-166-013
Cord,l.winker
|
33460-166-013 |
— | ||
|
12
|
12
33600-KC1-000
Winker assy,r.rr.
|
33600-KC1-000 |
— | ||
|
13
|
13
33604-KC1-000
Stop,r.rr.winker
|
33604-KC1-000 |
— | ||
|
14
|
14
33605-KC1-000
Stop,l.rr.winker
|
33605-KC1-000 |
— | ||
|
15
|
15
33606-074-010 Mount rumber |
33606-074-010 |
from US $5.18 |
||
|
16
|
16
33607-KC1-000
Stay,rr.winker
|
33607-KC1-000 |
— | ||
|
17
|
17
34905-GE2-000 Bulb,winker |
34905-GE2-000 |
US $3.85 |
||
|
18
|
18
50230-KC1-000
Brkt,winker,stay.
|
50230-KC1-000 |
— | ||
|
19
|
19
50235-KC1-000
Brkt,winker stay
|
50235-KC1-000 |
— | ||
|
20
|
20
80108-061-000 Collar a rrfender |
80108-061-000 |
US $6.53 |
||
| replacement | |||||
|
20
|
20
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
21
|
21
92000-05012-0A BoltHEX., 5X12 |
92000-05012-0A |
from US $0.37 |
||
| replacement | |||||
|
21
|
21
92101-05012-0G Bolt, hex. (5x12) |
92101-05012-0G |
from US $0.37 |
||
|
22
|
22
93700-060-160-B Screw,oval, 6x16 |
93700-060-160-B |
from US $0.62 |
||
|
23
|
23
93700-060250B Screw, oval (6x25) |
93700-060250B |
from US $0.74 |
||
|
24
|
24
93901-14480 ScrewTAPPING, 4X16 |
93901-14480 |
US $0.37 |
||
|
25
|
25
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
