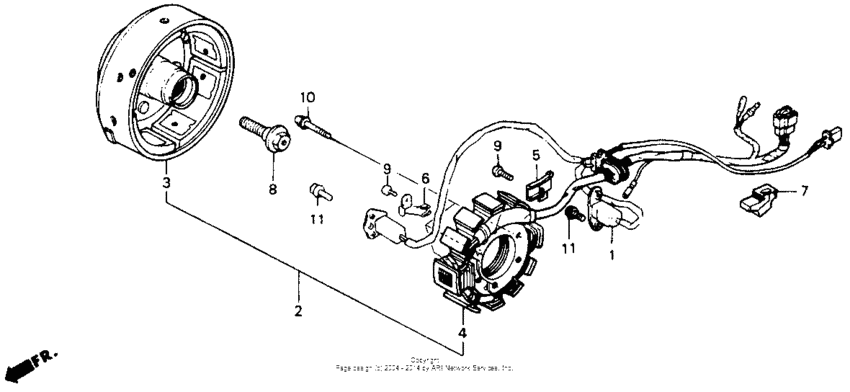

Alternator Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30300-KC1-004 Generator,pulse |
30300-KC1-004 |
from US $102.80 |
||
|
2
|
2
31100-KC1-921
Generator assy.,f
|
31100-KC1-921 |
— | ||
|
3
|
3
31110-KC1-921 Flywheel |
31110-KC1-921 |
US $401.86 |
||
|
4
|
4
31120-KC1-921
Stator
|
31120-KC1-921 |
— | ||
|
5
|
5
32912-KB4-670 Clamp, wire |
32912-KB4-670 |
from US $4.07 |
||
|
6
|
6
32912-KC1-000 Clamper,cord |
32912-KC1-000 |
from US $4.42 |
||
|
7
|
7
32972-KC1-850 Grommet |
32972-KC1-850 |
from US $4.07 |
||
|
8
|
8
90123-402-700 Bolt, rotor setting |
90123-402-700 |
from US $6.07 |
||
|
9
|
9
90089-KR0-000 Bolt, socket, 5x12Use from Engine SN 2002397 |
90089-KR0-000 |
from US $2.22 |
||
|
10
|
10
93500-050-120-A ScrewPAN, 5X12 Use up to Engine SN 2002396 |
93500-050-120-A |
from US $0.37 |
||
|
11
|
11
93892-050-280-8 Washer screw 5x28 |
93892-050-280-8 |
US $0.52 |
||
|
12
|
12
93892-060-200-8 Screw-washer6X20 |
93892-060-200-8 |
US $0.52 |
