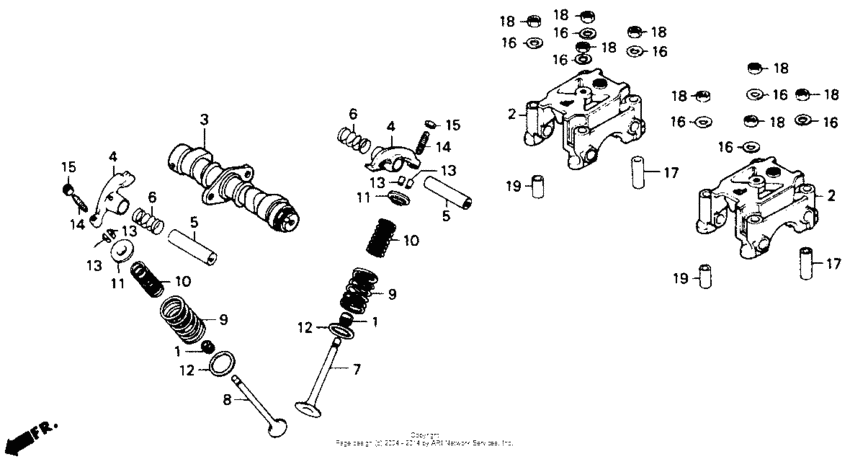

Camshaft Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12208-413-003 Seal, valve stem (arai) |
12208-413-003 |
from US $7.84 |
||
|
2
|
2
12231-399-010 Holder, camshaft |
12231-399-010 |
from US $81.60 |
||
|
3
|
3
14110-KC1-730
Cam shaft set
|
14110-KC1-730 |
— | ||
|
4
|
4
14431-116-010 Arm, Valve Rocker |
14431-116-010 |
from US $25.57 |
||
|
5
|
5
14451-399-000 Shaft |
14451-399-000 |
from US $9.32 |
||
|
6
|
6
14461-KC2-680 Spring |
14461-KC2-680 |
from US $2.15 |
||
|
7
|
7
14711-KC1-920 Valve, in |
14711-KC1-920 |
from US $16.51 |
||
|
8
|
8
14721-KC1-920 Valve, ex |
14721-KC1-920 |
US $77.45 |
||
|
9
|
9
14751-KB4-671 Spg,valve outer |
14751-KB4-671 |
US $9.95 |
||
|
10
|
10
14761-399-005 Spring, valve |
14761-399-005 |
from US $6.81 |
||
|
11
|
11
14771-107-020 Retainer, vlv spr |
14771-107-020 |
from US $5.03 |
||
|
12
|
12
14775-107-000 Seat, valve spring |
14775-107-000 |
from US $3.63 |
||
|
13
|
13
14781-107-003 Cotter, valve (sanko) |
14781-107-003 |
from US $3.18 |
||
|
14
|
14
90012-333-000 Screw, tappet adjusting |
90012-333-000 |
from US $3.03 |
||
|
15
|
15
90206-001-000 Nut, tappet adjusting |
90206-001-000 |
from US $2.41 |
||
|
16
|
16
90483-028-000 Washer, 8mm |
90483-028-000 |
from US $1.92 |
||
|
17
|
17
90701-399-000 Dowel pin, 10x28 |
90701-399-000 |
from US $3.70 |
||
|
18
|
18
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
19
|
19
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
