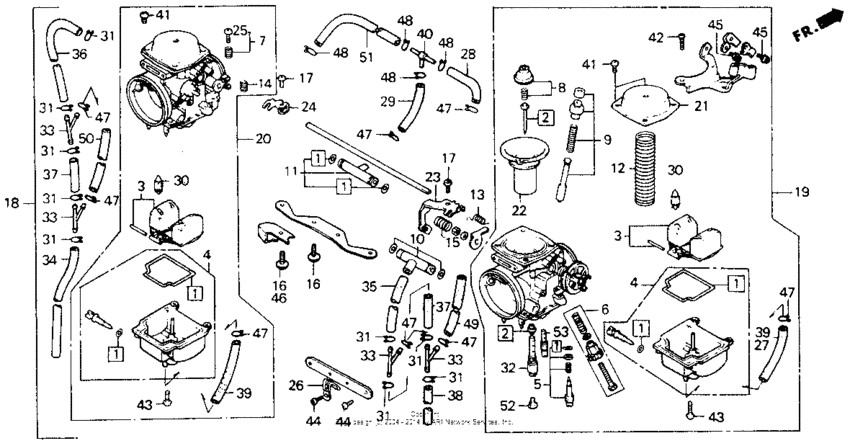

Carburetor Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KR3-601
Gasket set
|
16010-KR3-601 |
— | ||
| replacement | |||||
|
1
|
1
16010-KR3-980 Gasket set |
16010-KR3-980 |
US $21.22 |
||
|
2
|
2
16012-KC1-920
Needle set, jet
|
16012-KC1-920 |
— | ||
|
3
|
3
16013-KR3-980 Float set |
16013-KR3-980 |
from US $48.96 |
||
|
4
|
4
16015-KC1-920
Chamber set, float
|
16015-KC1-920 |
— | ||
|
5
|
5
16016-KS4-641
Screw set a
|
16016-KS4-641 |
— | ||
|
6
|
6
16028-KR3-671 Screw set |
16028-KR3-671 |
US $38.32 |
||
| replacement | |||||
|
6
|
6
16028-KR3-980 Screw set |
16028-KR3-980 |
from US $23.94 |
||
|
7
|
7
16029-KEJ-900 Screw set |
16029-KEJ-900 |
from US $14.96 |
||
|
8
|
8
16037-KEN-620 Plate set, valve |
16037-KEN-620 |
from US $11.69 |
||
|
9
|
9
16046-MA6-003 Valve set, starter |
16046-MA6-003 |
from US $47.56 |
||
|
10
|
10
16047-KT7-003 Joint set d, tube |
16047-KT7-003 |
US $40.92 |
||
| replacement | |||||
|
10
|
10
16048-KR3-980 Joint set |
16048-KR3-980 |
from US $43.38 |
||
|
10
|
10
16048-KR3-980 Joint set |
16048-KR3-980 |
from US $43.38 |
||
|
11
|
11
16048-KR3-980 Joint set |
16048-KR3-980 |
from US $43.38 |
||
|
12
|
12
16051-KC1-920 Spring |
16051-KC1-920 |
US $13.84 |
||
|
13
|
13
16051-KR3-601 Spring,torsion co |
16051-KR3-601 |
US $4.59 |
||
|
14
|
14
16052-MB0-671 Spring |
16052-MB0-671 |
from US $6.36 |
||
|
15
|
15
16053-MA6-003 Spring |
16053-MA6-003 |
US $10.42 |
||
|
16
|
16
16080-ML4-611 Screw, pan (6x12) |
16080-ML4-611 |
from US $2.52 |
||
|
17
|
17
16081-ML4-611
Pan screw 4x8
|
16081-ML4-611 |
— | ||
|
18
|
18
16100-KC1-922
Carburetor (ve32a a)
|
16100-KC1-922 |
— | ||
|
19
|
19
16101-KC1-920
Carburetor assy., r.
|
16101-KC1-920 |
— | ||
|
20
|
20
16102-KC1-920
Carburetor assy., l.
|
16102-KC1-920 |
— | ||
|
21
|
21
16107-KR3-601 Top comp. |
16107-KR3-601 |
US $36.57 |
||
|
22
|
22
16111-KC1-920
Piston, vacuum
|
16111-KC1-920 |
— | ||
|
23
|
23
16120-KR3-601 Lever,starter |
16120-KR3-601 |
US $18.65 |
||
|
24
|
24
16121-MA6-003 Lever, starter |
16121-MA6-003 |
from US $9.03 |
||
|
25
|
25
16124-KR3-601 Screw, stopper |
16124-KR3-601 |
US $14.62 |
||
|
26
|
26
16134-KC1-920 Binder |
16134-KC1-920 |
from US $4.61 |
||
|
27
|
27
16142-MN9-004 Tube |
16142-MN9-004 |
US $8.36 |
||
|
30
|
30
16155-413-751 Valve, float |
16155-413-751 |
from US $25.16 |
||
|
32
|
32
16165-KC1-920
Holder, needle jet
|
16165-KC1-920 |
— | ||
|
35
|
35
16199-KC1-920 Tube, air vent |
16199-KC1-920 |
US $7.62 |
||
|
39
|
39
16198-KW4-003 Tube |
16198-KW4-003 |
US $6.95 |
||
|
41
|
41
93500-040-080-A ScrewPAN, 4X8 |
93500-040-080-A |
from US $0.38 |
||
|
42
|
42
93500-040-100-A ScrewPAN, 4X10 |
93500-040-100-A |
from US $0.37 |
||
|
43
|
43
93500-040140A Screw, pan, 4x14 |
93500-040140A |
from US $0.37 |
||
|
44
|
44
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
45
|
45
93892-0401000 Screw-washer (4x10) |
93892-0401000 |
from US $0.44 |
||
|
47
|
47
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
52
|
52
99101-GHB0950 Jet, main (#95) |
99101-GHB0950 |
from US $5.33 |
||
|
53
|
53
99103-KC1-0380 Slow,jet #38 |
99103-KC1-0380 |
from US $6.51 |
||
