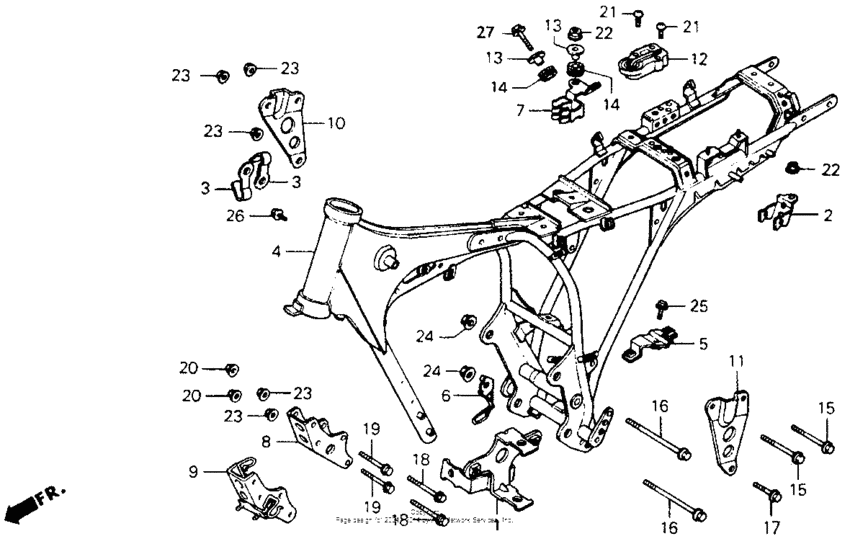

Frame Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30506-KC1-920
Stay, ignition
|
30506-KC1-920 |
— | ||
|
2
|
2
35851-KC1-000 Stay |
35851-KC1-000 |
US $12.87 |
||
|
3
|
3
45469-399-000 Clip,clutch cable |
45469-399-000 |
US $7.99 |
||
|
4
|
4
50100-KC1-920ZA
Frame *nh1*
|
50100-KC1-920ZA |
— | ||
|
5
|
5
50132-KC1-920 Stay, regulator |
50132-KC1-920 |
US $20.89 |
||
|
6
|
6
50335-KC1-920 Clamp, tube |
50335-KC1-920 |
US $21.44 |
||
|
7
|
7
50340-KC1-010 Plate |
50340-KC1-010 |
from US $4.93 |
||
|
8
|
8
50351-KB4-000ZA
Plate, fr. *nh1*
|
50351-KB4-000ZA |
— | ||
|
10
|
10
50353-KC1-730 Plate, r. eng hgr |
50353-KC1-730 |
from US $13.52 |
||
|
11
|
11
50354-KC1-700 Plate, l. eng hgr |
50354-KC1-700 |
from US $13.80 |
||
|
12
|
12
77230-MA6-007 Lock assy.,seat |
77230-MA6-007 |
US $81.84 |
||
|
13
|
13
83601-357-000 Colr, cover setting |
83601-357-000 |
from US $4.44 |
||
|
14
|
14
84703-KC1-000 Rub,taillight mtg |
84703-KC1-000 |
from US $3.11 |
||
|
15
|
15
90010-KB4-000 Bolt, flange, 8x72 |
90010-KB4-000 |
US $3.63 |
||
|
16
|
16
90019-399-010 Bolt, flg (10x110) |
90019-399-010 |
from US $5.48 |
||
|
17
|
17
90118-471-000 Bolt, flange, 8x37 |
90118-471-000 |
from US $3.26 |
||
|
18
|
18
90127-KC1-730 Bolt, flange (8x65) |
90127-KC1-730 |
from US $3.11 |
||
|
19
|
19
90161-KC1-730 Bolt,flange,8x60 |
90161-KC1-730 |
from US $3.56 |
||
|
20
|
20
90208-425-870 Nut, flange, 8mm |
90208-425-870 |
from US $2.89 |
||
|
21
|
21
93500-060120G Screw, pan, 6x12 |
93500-060120G |
from US $0.44 |
||
|
22
|
22
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
23
|
23
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
24
|
24
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
25
|
25
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
26
|
26
95701-060-180-7 BoltFLANGE, 6X18 |
95701-060-180-7 |
from US $0.52 |
||
|
27
|
27
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
