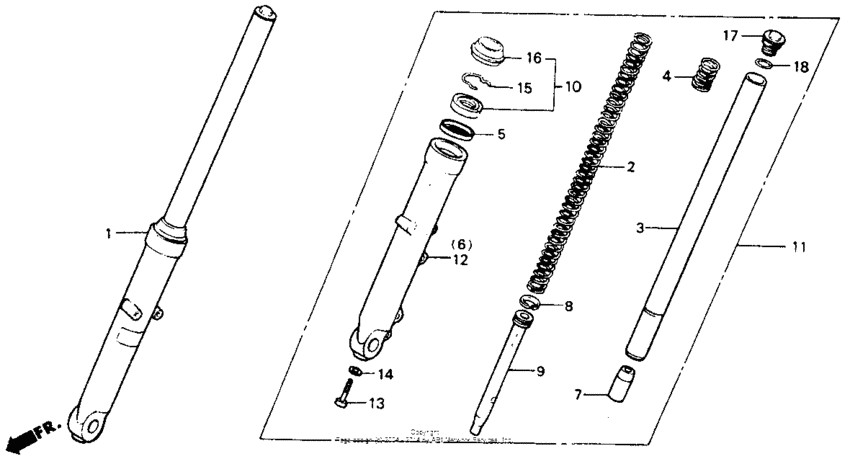

Front fork Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-KC1-921
Fork assy., r. fr.
|
51400-KC1-921 |
— | ||
|
2
|
2
51401-KC1-003 Spg.,fr.cushion |
51401-KC1-003 |
US $41.77 |
||
|
3
|
3
51410-KC1-003 Pipe,fr.fork |
51410-KC1-003 |
from US $204.17 |
||
|
4
|
4
51412-331-770 Spring, fr |
51412-331-770 |
from US $4.29 |
||
|
5
|
5
51412-446-003 Ring,back up |
51412-446-003 |
US $5.87 |
||
|
6
|
6
51420-KC1-921
Case, r. fr. (lower)
|
51420-KC1-921 |
— | ||
|
7
|
7
51432-447-731 Piece, oil locking |
51432-447-731 |
from US $14.21 |
||
|
8
|
8
51437-373-781
Ring,piston
|
51437-373-781 |
— | ||
|
9
|
9
51470-KB4-003
Pipe,seat
|
51470-KB4-003 |
— | ||
|
10
|
10
51490-GAA-305 Seal set, fr. fork |
51490-GAA-305 |
from US $16.51 |
||
|
11
|
11
51500-KC1-921
Fork Assy., L. Fr.
|
51500-KC1-921 |
— | ||
|
12
|
12
51520-KC1-921
Case, l. fr. (lower)
|
51520-KC1-921 |
— | ||
|
13
|
13
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
14
|
14
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
15
|
15
90601-354-000 Ring, oil seal stop |
90601-354-000 |
from US $4.74 |
||
|
16
|
16
91254-GAA-003 Dust seal |
91254-GAA-003 |
from US $9.32 |
||
|
17
|
17
9460527101 Bolt d1, fork |
9460527101 |
from US $5.45 |
||
|
18
|
18
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
