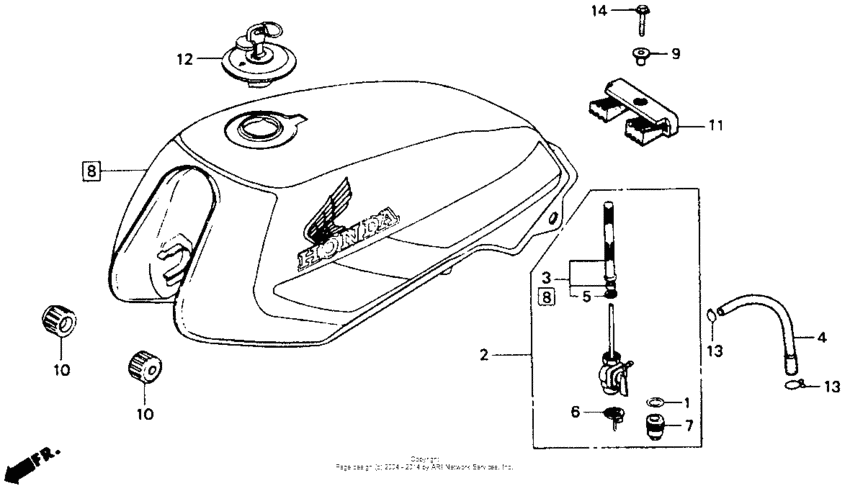

Fuel tank Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16173-001-004 Packing, fuel strainer cup |
16173-001-004 |
from US $5.48 |
||
|
2
|
2
16950-KC1-920
Petcock assy.
|
16950-KC1-920 |
— | ||
|
3
|
3
16952-KC1-005 Filter set, fuel |
16952-KC1-005 |
from US $38.25 |
||
|
4
|
4
16953-KC1-730 Tube, fuel |
16953-KC1-730 |
US $6.21 |
||
|
5
|
5
16958-397-771 O-ring, 9.0x1.3 |
16958-397-771 |
from US $7 |
||
|
6
|
6
16959-471-831 Filter, cup |
16959-471-831 |
from US $11.41 |
||
|
7
|
7
16967-GA6-671 Cup, fuel strainer |
16967-GA6-671 |
from US $11.61 |
||
|
8
|
8
1751P-KC1-920ZA
Tank, fuel *r109*
|
1751P-KC1-920ZA |
— | ||
|
9
|
9
17525-KG7-000 Collar |
17525-KG7-000 |
US $4.88 |
||
|
10
|
10
17611-KE8-000 Rubber, fr |
17611-KE8-000 |
from US $6.36 |
||
|
11
|
11
17613-KE5-000 Cush.fuel tank rr |
17613-KE5-000 |
from US $11.54 |
||
|
12
|
12
17620-460-067 Cap,fuel filler |
17620-460-067 |
from US $53.18 |
||
|
13
|
13
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
14
|
14
95701-080-250-0 BoltFLANGE, 8X25 |
95701-080-250-0 |
from US $0.74 |
