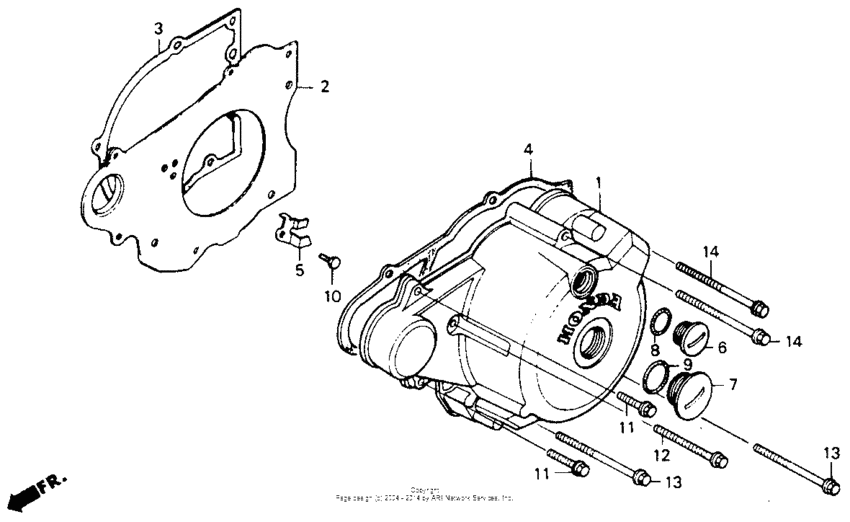

Left Crankcase Cover Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-KC1-920
Cover, l. crankcase
|
11341-KC1-920 |
— | ||
|
2
|
2
11371-KC1-000 Spacer, l. side |
11371-KC1-000 |
US $67.56 |
||
|
3
|
3
11394-KBG-772 Gasket, l |
11394-KBG-772 |
from US $14.50 |
||
|
4
|
4
11395-KBG-771 Gasket, l |
11395-KBG-771 |
US $11.56 |
||
| replacement | |||||
|
4
|
4
11395-KBG-772 Gskt, l. side spacer |
11395-KBG-772 |
from US $9.02 |
||
|
5
|
5
28117-402-000 Plate |
28117-402-000 |
from US $4.37 |
||
|
6
|
6
90084-471-000 Cap, alternator |
90084-471-000 |
US $6.81 |
||
|
7
|
7
90087-471-000 Cap (30mm) |
90087-471-000 |
from US $11.84 |
||
|
8
|
8
91302-567-003 O-ring (27.4x2.4) |
91302-567-003 |
from US $2.66 |
||
|
9
|
9
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
10
|
10
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
11
|
11
96001-0602007 Bolt, flange (6x20) |
96001-0602007 |
from US $0.59 |
||
|
12
|
12
96001-0604007 Bolt, flange (6x40) |
96001-0604007 |
from US $0.74 |
||
|
13
|
13
96001-0605007 Bolt, flange (6x50) |
96001-0605007 |
from US $0.81 |
||
|
14
|
14
96001-0606507 Bolt, flange (6x65) |
96001-0606507 |
from US $0.81 |
||
