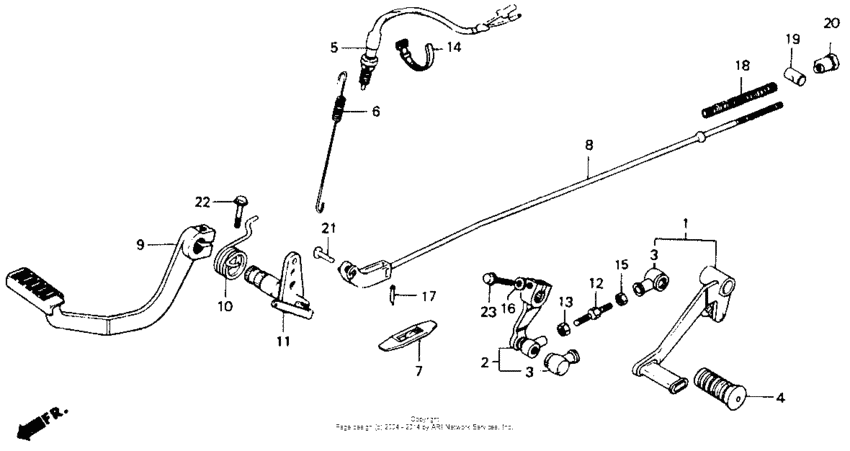

Pedal Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-KC1-000
Pedal,gear change
|
24700-KC1-000 |
— | ||
|
2
|
2
24710-KC1-000 Arm,gear change |
24710-KC1-000 |
US $49.15 |
||
|
3
|
3
24724-422-000 Cover, dust |
24724-422-000 |
from US $6.51 |
||
|
4
|
4
24781-419-000 Rubber |
24781-419-000 |
from US $5.18 |
||
|
5
|
5
35350-KC1-920 Switch, rr. stop |
35350-KC1-920 |
US $16.41 |
||
|
6
|
6
35357-KC1-730 Spring, stop switch |
35357-KC1-730 |
US $3.48 |
||
|
7
|
7
43411-KC1-000 Cover, rr |
43411-KC1-000 |
from US $7.39 |
||
|
8
|
8
43451-KC1-730 Rod,rr.brake |
43451-KC1-730 |
US $17.26 |
||
|
9
|
9
46500-KC1-700 Pedal comp.,rr.br |
46500-KC1-700 |
US $86.72 |
||
|
10
|
10
46514-KC1-000 Spg.,brake pedal |
46514-KC1-000 |
US $6.81 |
||
|
11
|
11
46515-KC1-000 Shaft,rr.brk.pivo |
46515-KC1-000 |
US $52.56 |
||
|
12
|
12
90065-KC1-000 Bolt, tie rod |
90065-KC1-000 |
from US $6.66 |
||
|
13
|
13
90201-KC1-000 Nut, tie rod |
90201-KC1-000 |
from US $2.01 |
||
|
14
|
14
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
15
|
15
94002-060-700-S NutHEX., 6MM |
94002-060-700-S |
from US $0.44 |
||
|
16
|
16
94103-06700 WasherPLAIN, 6MM |
94103-06700 |
from US $0.37 |
||
|
17
|
17
94201-20120 PinSPLIT, 2.0X12 |
94201-20120 |
from US $0.37 |
||
|
18
|
18
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
19
|
19
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
20
|
20
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
21
|
21
9501553000 Pin, joint |
9501553000 |
from US $1.48 |
||
|
22
|
22
95701-0802507 Bolt, flange, 8x25 |
95701-0802507 |
from US $0.74 |
||
|
23
|
23
96001-060-120-7 BoltFLANGE, 6X12 |
96001-060-120-7 |
from US $0.59 |
