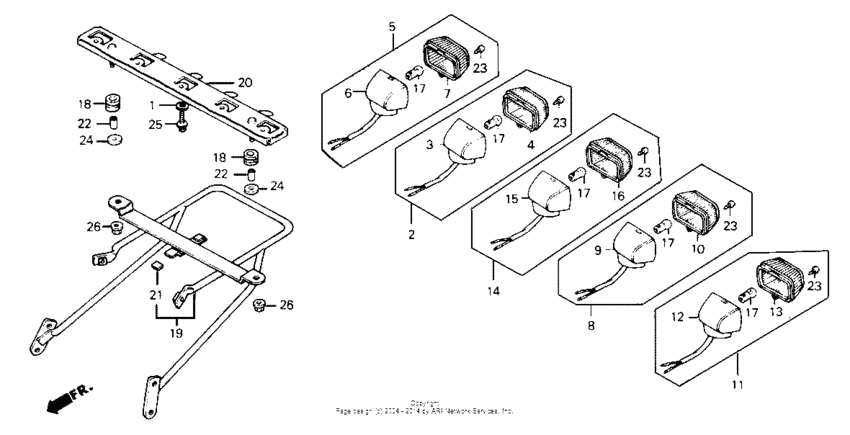

Rear pilot lamp Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22403-148-000 Plate,clutch set |
22403-148-000 |
US $2.63 |
||
|
2
|
2
33510-KC1-920
Lamp, pilot (1)
|
33510-KC1-920 |
— | ||
|
3
|
3
33511-KC1-920
Base, pilot lamp (1)
|
33511-KC1-920 |
— | ||
|
4
|
4
33512-ML0-820 Lens, pilot |
33512-ML0-820 |
from US $3.93 |
||
|
5
|
5
33530-KC1-920 Lamp (3) (12v 4cp) |
33530-KC1-920 |
US $23.19 |
||
|
6
|
6
33531-KC1-920
Base, pilot lamp (3)
|
33531-KC1-920 |
— | ||
|
7
|
7
33532-ML0-820 Lens 3, pilot |
33532-ML0-820 |
from US $3.93 |
||
|
8
|
8
33540-KC1-920
Lamp, fr. (12v 4cp)
|
33540-KC1-920 |
— | ||
|
9
|
9
33551-KC1-920
Base, fr.
|
33551-KC1-920 |
— | ||
|
10
|
10
33552-ML0-820 Lens, fr. |
33552-ML0-820 |
from US $3.93 |
||
|
11
|
11
33570-KC1-920
Lamp (green 12v 4cp)
|
33570-KC1-920 |
— | ||
|
12
|
12
33571-KC1-920
Base
|
33571-KC1-920 |
— | ||
|
13
|
13
33572-ML0-820 Lens, speedometer |
33572-ML0-820 |
from US $3.93 |
||
|
14
|
14
33580-KC1-920
Lamp, engine pilot
|
33580-KC1-920 |
— | ||
|
15
|
15
33581-KC1-920
Base, engine pilot
|
33581-KC1-920 |
— | ||
|
16
|
16
33582-ML0-820 Lens, engine pilot |
33582-ML0-820 |
from US $3.93 |
||
|
17
|
17
34909-505-003 Bulb12V8W |
34909-505-003 |
US $37.40 |
||
| replacement | |||||
|
17
|
17
34904-634-611 BULB (12V 5W) (ECE)(12V, 5W) ECE |
34904-634-611 |
from US $1.41 |
||
|
18
|
18
37215-MA6-008 Rubber |
37215-MA6-008 |
from US $1.73 |
||
|
19
|
19
84146-KC1-920
Brkt, rr. lamp stay
|
84146-KC1-920 |
— | ||
|
20
|
20
84150-KC1-920
Stay, rr. lamp
|
84150-KC1-920 |
— | ||
|
21
|
21
84906-KC1-830 Cushion |
84906-KC1-830 |
US $0.85 |
||
|
22
|
22
84906-118-000 Collar, number bracket setting |
84906-118-000 |
from US $2.37 |
||
|
23
|
23
90101-GA7-003 Screw,tap.,3x14 |
90101-GA7-003 |
from US $1.31 |
||
|
24
|
24
90525-030-000 Washer b, handle holder setting |
90525-030-000 |
from US $2.59 |
||
|
25
|
25
93894-040-180-7 Screw-washer (4x18) |
93894-040-180-7 |
from US $0.44 |
||
|
26
|
26
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
