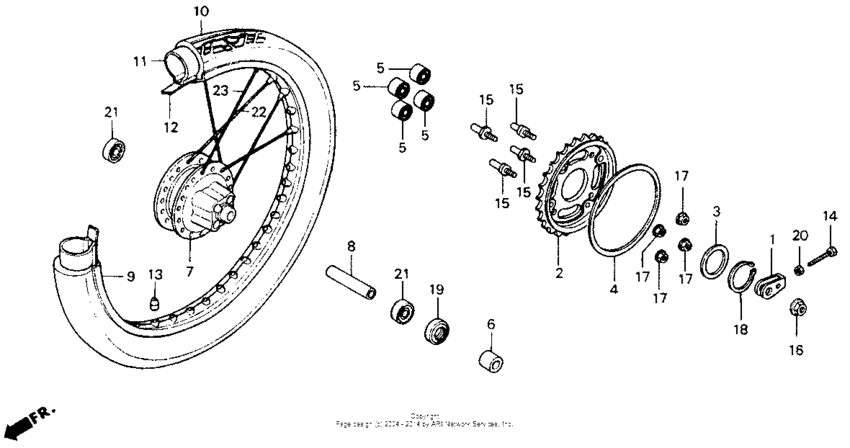

Rear wheel Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-KC1-730 Adjuster,chain |
40543-KC1-730 |
US $7.84 |
||
|
2
|
2
41200-399-740
Sprocket,driven
|
41200-399-740 |
— | ||
|
3
|
3
41202-KB4-000 Washer (58x67x2) |
41202-KB4-000 |
from US $4.44 |
||
|
4
|
4
41212-KC1-730 Arrester, noise |
41212-KC1-730 |
US $15.18 |
||
|
5
|
5
41241-KB4-003 Bush,wheel damper |
41241-KB4-003 |
US $9.32 |
||
|
6
|
6
42312-KK4-000 Colr, rr. wheel side |
42312-KK4-000 |
from US $7.55 |
||
|
7
|
7
42601-KB4-000 Hub,rr.wheel |
42601-KB4-000 |
from US $380.17 |
||
|
8
|
8
42620-KB4-000 Collar, rr. |
42620-KB4-000 |
from US $7.70 |
||
|
9
|
9
42701-KM7-971
Rim, rr. (1.85x18)
|
42701-KM7-971 |
— | ||
|
10
|
10
42711-KC1-921 Tire, rr. (3.25-18) |
42711-KC1-921 |
US $162.61 |
||
|
11
|
11
42712-KT1-671
Tube (100/100-18)
|
42712-KT1-671 |
— | ||
| replacement | |||||
|
11
|
11
42712-KT1-673 TUBE (120/80-18) |
42712-KT1-673 |
from US $34.22 |
||
|
12
|
12
42713-300-004 Flap, tire (2.15-18) |
42713-300-004 |
US $8.98 |
||
|
13
|
13
44606-283-000 Balancer (20g) |
44606-283-000 |
from US $6.48 |
||
|
14
|
14
90119-258-000 Bolt,chain adjust |
90119-258-000 |
from US $5.48 |
||
|
15
|
15
90128-382-670 Bolt |
90128-382-670 |
from US $5.54 |
||
|
16
|
16
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
17
|
17
90308-382-670 Nut, flange, 10mm |
90308-382-670 |
from US $3.48 |
||
|
18
|
18
90664-216-000 Circlip (58mm) |
90664-216-000 |
from US $5.18 |
||
|
19
|
19
91257-230-003 Oil seal (28x42x7) |
91257-230-003 |
from US $8.29 |
||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
21
|
21
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
|
22
|
22
97284-521-62P-0 Spoke set b (9x161) |
97284-521-62P-0 |
US $2.37 |
||
|
23
|
23
97605-521-61P-0 Spoke set b |
97605-521-61P-0 |
from US $1.92 |
||
