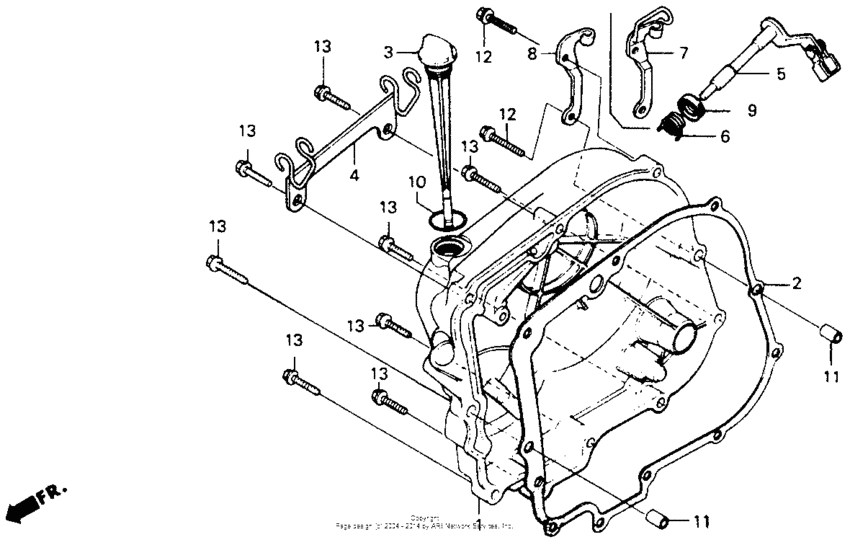

Right clankcase cover Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-KC1-920
Cover, r. crankcase
|
11330-KC1-920 |
— | ||
|
2
|
2
11393-KBG-772 Gasket, r |
11393-KBG-772 |
from US $17.54 |
||
| replacement | |||||
|
2
|
2
11393-KBG-773 Gasket, r |
11393-KBG-773 |
from US $18.43 |
||
|
3
|
3
15650-KC1-000 Gauge,oil level |
15650-KC1-000 |
US $11.10 |
||
|
5
|
5
22810-KR3-600 Lever, clutch |
22810-KR3-600 |
from US $24.07 |
||
|
6
|
6
22815-KE1-000 Spring, clutch lever |
22815-KE1-000 |
from US $4.11 |
||
|
8
|
8
22838-KR3-600 Receiver |
22838-KR3-600 |
from US $10.51 |
||
|
9
|
9
91204-KK0-003 Oil seal (12x18x5) |
91204-KK0-003 |
from US $2.21 |
||
|
10
|
10
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4 |
||
|
11
|
11
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
12
|
12
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
13
|
13
96001-0604007 Bolt, flange (6x40) |
96001-0604007 |
from US $0.74 |
||
