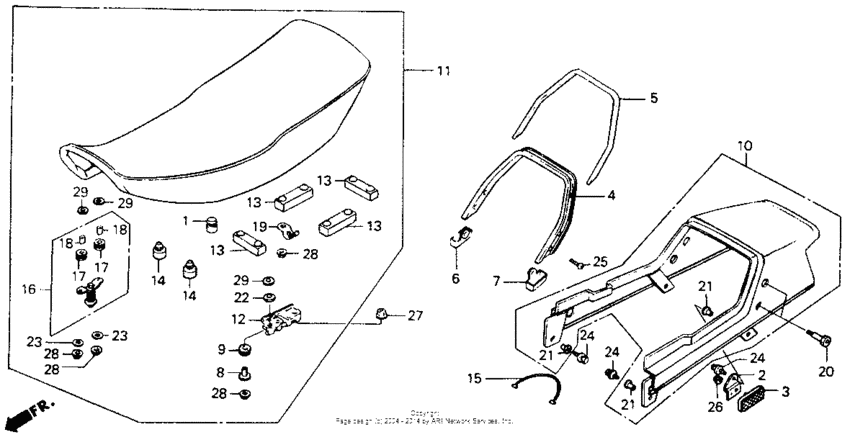

Seat Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17213-GB4-000 Rubber, a/clnr elem |
17213-GB4-000 |
US $3.74 |
||
|
2
|
2
33740-KC1-920
Stay, rr. reflector
|
33740-KC1-920 |
— | ||
|
3
|
3
33741-MC7-612 Reflector, reflex |
33741-MC7-612 |
from US $16.86 |
||
|
4
|
4
50400-KC1-000 Bar,rr.grip |
50400-KC1-000 |
US $144.93 |
||
|
5
|
5
50401-KC1-000 Rub.,rr.grip bar |
50401-KC1-000 |
from US $12.80 |
||
|
6
|
6
50405-KC1-000 Rub,r.rr.grip end |
50405-KC1-000 |
from US $7.87 |
||
|
7
|
7
50406-KC1-000 Rub,l.rr.grip end |
50406-KC1-000 |
from US $7.85 |
||
|
8
|
8
61104-422-000 Collar, setting |
61104-422-000 |
from US $5.18 |
||
|
9
|
9
61304-415-000 Rubber |
61304-415-000 |
from US $2.96 |
||
|
10
|
10
772A1-KC1-900ZC Cowl set, st *r109* |
772A1-KC1-900ZC |
from US $211.20 |
||
|
11
|
11
77200-KC1-601
Seat
|
77200-KC1-601 |
— | ||
|
12
|
12
77202-KC1-000 Hinge comp.,seat |
77202-KC1-000 |
US $29.12 |
||
|
13
|
13
77205-286-000 Rubber b, seat setting |
77205-286-000 |
from US $6.66 |
||
|
14
|
14
77206-GF0-000 Rubber, seat setting |
77206-GF0-000 |
from US $3.18 |
||
|
15
|
15
77208-KC1-000 Stopper,seat |
77208-KC1-000 |
from US $4.76 |
||
|
16
|
16
77220-340-003
Bar assy., seat lock
|
77220-340-003 |
— | ||
|
17
|
17
77228-340-003 Rubber, seat lock bar cushion |
77228-340-003 |
from US $5.48 |
||
|
18
|
18
77229-340-003 Colr, seat lock bar |
77229-340-003 |
from US $3.03 |
||
|
19
|
19
81222-GA7-810 Stay, lid stopper |
81222-GA7-810 |
from US $3.48 |
||
|
20
|
20
90110-KC1-000
Bolt,grip bar set
|
90110-KC1-000 |
— | ||
|
21
|
21
90506-425-000 Washer, rr. cover |
90506-425-000 |
from US $2.89 |
||
|
22
|
22
90509-169-000
Washer, 14mm
|
90509-169-000 |
— | ||
|
23
|
23
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
24
|
24
93402-060-120-0 Bolt-washer6X12 |
93402-060-120-0 |
from US $0.52 |
||
|
25
|
25
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
26
|
26
94050-05070 NutFLANGE, 5MM |
94050-05070 |
from US $0.44 |
||
|
27
|
27
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
28
|
28
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
29
|
29
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
