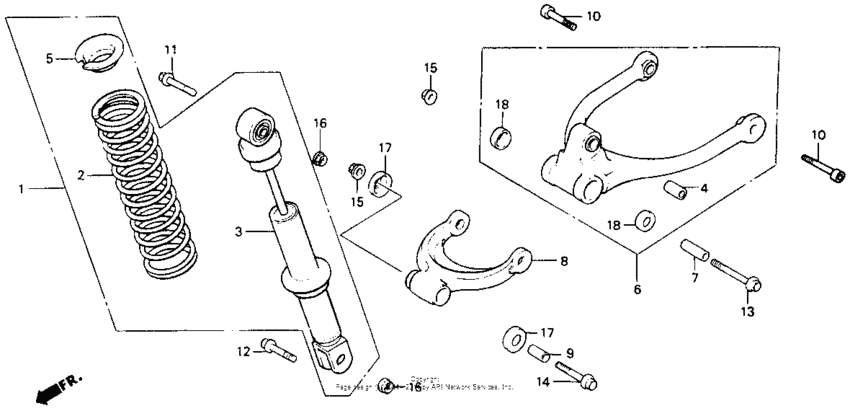

Shock absorber Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KC1-921
Shock absorber, rr.
|
52400-KC1-921 |
— | ||
|
2
|
2
52401-KC1-921
Spring, rr. shock
|
52401-KC1-921 |
— | ||
|
3
|
3
52410-KC1-921
Damper, rr.
|
52410-KC1-921 |
— | ||
|
4
|
4
52451-GE2-000 Bush,damper lower |
52451-GE2-000 |
from US $11.59 |
||
|
5
|
5
52459-KC1-003 Seat, spring stopper |
52459-KC1-003 |
from US $13.47 |
||
|
6
|
6
52460-KC1-000 Arm assy.,cushion |
52460-KC1-000 |
from US $278.78 |
||
|
7
|
7
52463-KC1-020 Collar |
52463-KC1-020 |
US $10.49 |
||
|
8
|
8
52470-KC1-000 Rod,cush.conn. |
52470-KC1-000 |
US $165.67 |
||
|
9
|
9
52473-MA0-020 Collar |
52473-MA0-020 |
from US $7.84 |
||
|
10
|
10
90104-KC1-000 Bolt,socket 10x63 |
90104-KC1-000 |
from US $13.17 |
||
|
11
|
11
90150-GE2-000 Bolt,flg 8x45.5 |
90150-GE2-000 |
from US $5.18 |
||
|
12
|
12
90153-GE2-000 Bolt,flange,8x48 |
90153-GE2-000 |
from US $3.85 |
||
|
13
|
13
90155-KC1-000
Bolt,flange 10x78
|
90155-KC1-000 |
— | ||
|
14
|
14
90101-MBB-000 Bolt, flange (10x62) |
90101-MBB-000 |
from US $2.59 |
||
|
15
|
15
90304-GA6-003 Nut, axle, 10mm |
90304-GA6-003 |
from US $2.96 |
||
|
16
|
16
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
17
|
17
91262-MA0-015 Seal, rr. |
91262-MA0-015 |
from US $9.47 |
||
|
18
|
18
91262-MB2-005 Dust seal, connecting rod pivot |
91262-MB2-005 |
from US $4.22 |
