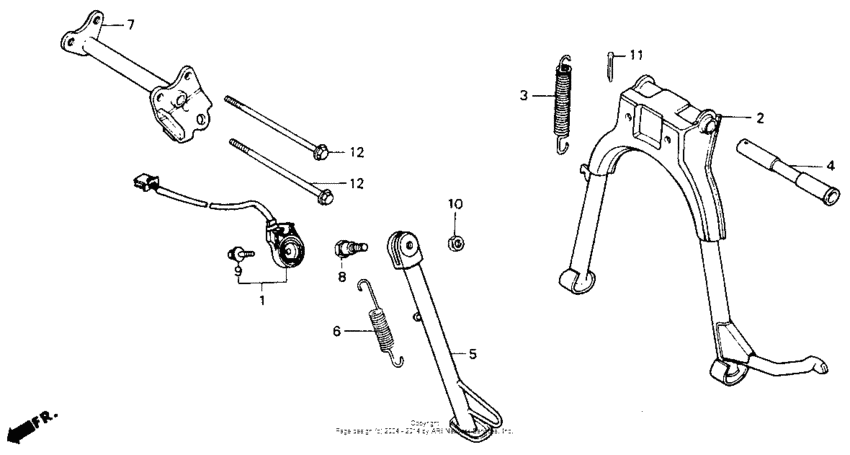

Stand Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35700-GB2-306
Set,sidestand sw.
|
35700-GB2-306 |
— | ||
|
2
|
2
50500-KC1-730 Stand comp.,main |
50500-KC1-730 |
US $97.38 |
||
|
3
|
3
50510-MT2-000 Spring, main stand |
50510-MT2-000 |
US $10.30 |
||
|
4
|
4
50526-KC1-920 Shaft |
50526-KC1-920 |
from US $9.47 |
||
|
5
|
5
50530-KC1-920 Bar, side stand |
50530-KC1-920 |
US $38.49 |
||
|
6
|
6
50541-MM4-000 Spring, side stand |
50541-MM4-000 |
from US $5.62 |
||
| replacement | |||||
|
6
|
6
50542-MZ2-000 Spring, side stand |
50542-MZ2-000 |
from US $7.40 |
||
|
7
|
7
50610-KC1-920 Bracket, side stand |
50610-KC1-920 |
US $40.58 |
||
|
8
|
8
90108-MK6-670 Bolt |
90108-MK6-670 |
from US $5.18 |
||
|
9
|
9
90147-MCE-950 Bolt, special (6x16) |
90147-MCE-950 |
from US $0.82 |
||
|
10
|
10
90203-MF9-710 Nut, side stand |
90203-MF9-710 |
from US $3.18 |
||
|
11
|
11
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
11
|
11
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
11
|
11
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
12
|
12
95801-081-300-8 Bolt, flange (8x130) |
95801-081-300-8 |
from US $1.63 |
||
