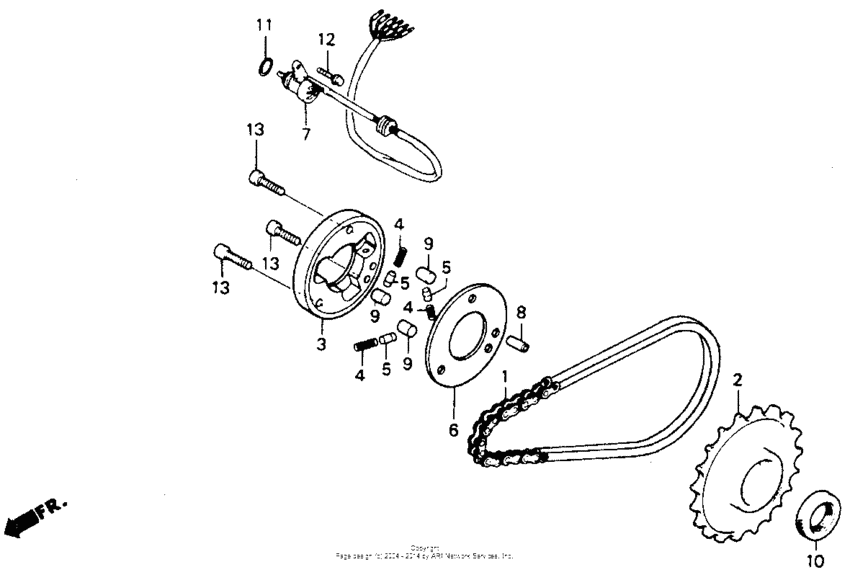

Starting clutch Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-KB4-671 Chain, starter |
28101-KB4-671 |
from US $25.02 |
||
|
2
|
2
28110-KB4-671 Sprocket (38t) |
28110-KB4-671 |
from US $63.09 |
||
|
3
|
3
28120-402-730 Outer comp,starti |
28120-402-730 |
from US $56.03 |
||
|
4
|
4
28125-253-020 Spring |
28125-253-020 |
from US $3.11 |
||
|
5
|
5
28126-253-030 Cap |
28126-253-030 |
from US $4.29 |
||
|
6
|
6
28128-253-030 Plate |
28128-253-030 |
from US $5.48 |
||
|
7
|
7
35759-KC1-850
Switch assy., change
|
35759-KC1-850 |
— | ||
|
8
|
8
90701-250-000 Pin, knock (6x17.5) |
90701-250-000 |
from US $1.80 |
||
|
9
|
9
91101-253-020 Roller (10.2x9.5) |
91101-253-020 |
from US $2.89 |
||
|
10
|
10
91205-965-003 Oil seal, 22x31x5 (arai) |
91205-965-003 |
from US $5.18 |
||
|
11
|
11
91305-KC1-850 O-ring (16.5x2.5) |
91305-KC1-850 |
from US $2.66 |
||
|
12
|
12
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
13
|
13
96600-060-161-0 Bolt, socket (6x16) |
96600-060-161-0 |
from US $0.65 |
