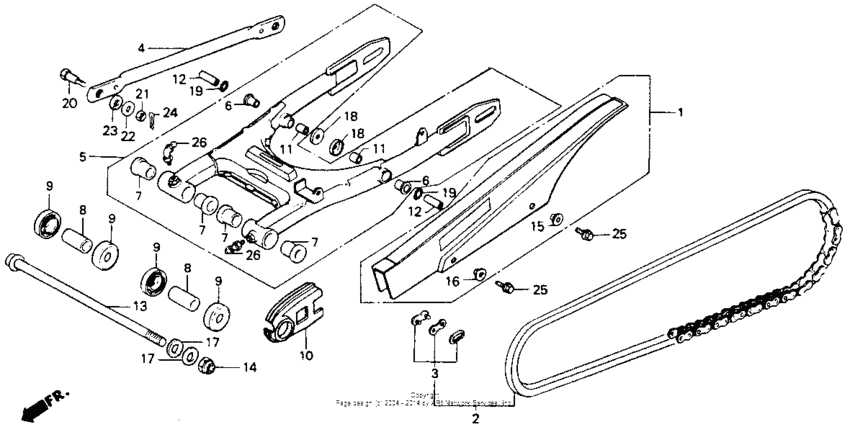

Swingarm Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-KC1-000 Case, drive chain |
40510-KC1-000 |
from US $48.28 |
||
|
2
|
2
405W3-KE1-505
Chain,drive
|
405W3-KE1-505 |
— | ||
|
3
|
3
40531-355-013 Master link |
40531-355-013 |
from US $6.56 |
||
|
3
|
3
40531-KFC-902 Master link |
40531-KFC-902 |
from US $6.94 |
||
|
3
|
3
40531-437-602
Master link
|
40531-437-602 |
— | ||
|
4
|
4
43431-KC1-730 Arm,rr.brake stop |
43431-KC1-730 |
US $19.14 |
||
|
5
|
5
52100-KC1-000 Fork assy.,rr. |
52100-KC1-000 |
US $378.32 |
||
|
6
|
6
52108-KC1-003 Bush,cush.pivot |
52108-KC1-003 |
US $13.10 |
||
|
7
|
7
52109-KC1-003 Bush, swingarm |
52109-KC1-003 |
from US $14.21 |
||
|
8
|
8
52141-356-010 Collar, r. swingarm |
52141-356-010 |
from US $35.90 |
||
|
9
|
9
52144-GC4-005 Dust seal |
52144-GC4-005 |
from US $7.84 |
||
|
10
|
10
52155-KC1-000 Slider,chain |
52155-KC1-000 |
US $21.15 |
||
|
11
|
11
52462-KC1-003 Bush,cushion arm |
52462-KC1-003 |
US $20.42 |
||
|
12
|
12
52463-MA2-010 Collar |
52463-MA2-010 |
US $17.04 |
||
|
13
|
13
90121-KB4-000 Bolt, rr |
90121-KB4-000 |
from US $23.26 |
||
|
14
|
14
90305-197-013 Nut, u, 14mm |
90305-197-013 |
from US $4 |
||
|
15
|
15
90512-KF9-900 Washer, 6x20 |
90512-KF9-900 |
from US $2.60 |
||
|
16
|
16
90513-405-000 Washer, 6x9 |
90513-405-000 |
from US $2.44 |
||
|
17
|
17
90526-268-000 Washer, rr. |
90526-268-000 |
from US $2.74 |
||
|
18
|
18
91262-MA0-015 Seal, rr. |
91262-MA0-015 |
from US $9.47 |
||
|
19
|
19
91351-MG7-003 O-ring (20.8x2.4) |
91351-MG7-003 |
from US $4.18 |
||
|
20
|
20
9281210000 Bolt a, stopper arm |
9281210000 |
from US $1.85 |
||
|
21
|
21
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
22
|
22
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
23
|
23
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
24
|
24
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
25
|
25
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
||
|
26
|
26
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
