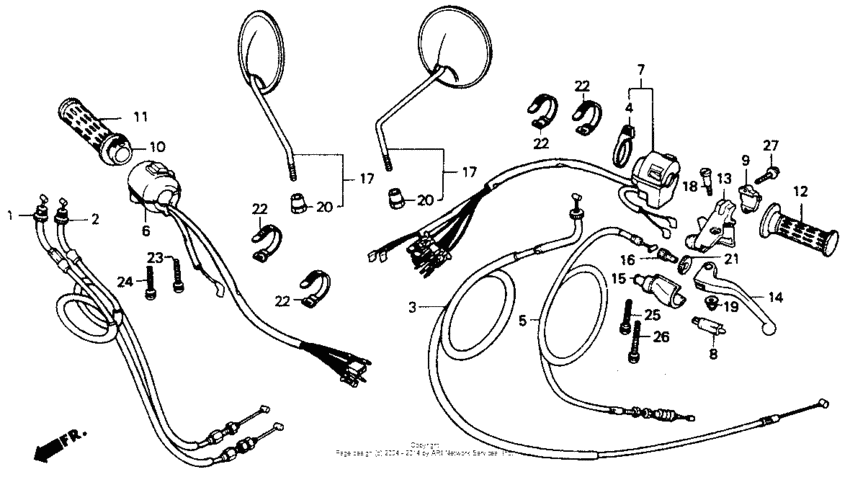

Switch Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-KC1-850 Cable A, Throttle |
17910-KC1-850 |
US $27.74 |
||
|
2
|
2
17920-KC1-850 Cable B, Throttle |
17920-KC1-850 |
from US $23.15 |
||
|
3
|
3
17950-KC1-920
Cable, choke
|
17950-KC1-920 |
— | ||
|
4
|
4
17962-MN8-003 Lever, choke |
17962-MN8-003 |
from US $14.30 |
||
|
5
|
5
22870-GM2-000
Cable,clutch
|
22870-GM2-000 |
— | ||
|
6
|
6
35130-KC1-920
Switch, starter stop
|
35130-KC1-920 |
— | ||
|
7
|
7
35200-KC1-920
Switch, turn signal
|
35200-KC1-920 |
— | ||
|
8
|
8
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $14.96 |
||
|
9
|
9
45517-MA5-671 Holder |
45517-MA5-671 |
from US $13.74 |
||
|
10
|
10
53141-422-000 Pipe, throttle grip |
53141-422-000 |
from US $12.64 |
||
|
11
|
11
53165-397-940 Grip, r. handle |
53165-397-940 |
from US $9.14 |
||
|
12
|
12
53166-397-940 Grip, l. handle |
53166-397-940 |
from US $7.69 |
||
|
13
|
13
53172-MJ6-000
Brkt.,hndl.lever
|
53172-MJ6-000 |
— | ||
|
14
|
14
53178-KV0-305 Lever, l. handle |
53178-KV0-305 |
from US $20.40 |
||
| replacement | |||||
|
14
|
14
53178-KV0-000 Lever, l. handle |
53178-KV0-000 |
from US $13.25 |
||
|
15
|
15
53180-425-010 Boot, handlebar |
53180-425-010 |
from US $14.50 |
||
|
16
|
16
53192-268-000 Bolt, cable adj. |
53192-268-000 |
from US $3.85 |
||
|
17
|
17
88110-KB7-010 Mirror assy.,back |
88110-KB7-010 |
US $40.97 |
||
|
18
|
18
90113-438-000 Bolt, l |
90113-438-000 |
from US $3.87 |
||
|
19
|
19
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
20
|
20
90314-329-000 Nut,lock |
90314-329-000 |
from US $4.59 |
||
|
21
|
21
90321-MA6-750 Nut, fixing |
90321-MA6-750 |
from US $7.99 |
||
|
22
|
22
90650-KW3-000 Band, wire |
90650-KW3-000 |
from US $2.89 |
||
|
23
|
23
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
24
|
24
93892-0502507 Screw-washer (5x25) |
93892-0502507 |
from US $0.52 |
||
|
25
|
25
93892-0504007 Screw-washer (5x40) |
93892-0504007 |
US $0.52 |
||
|
26
|
26
93892-0504507 Screw-washer (5x45) |
93892-0504507 |
from US $0.67 |
||
|
27
|
27
96001-0602507 Bolt, flange (6x25) |
96001-0602507 |
from US $0.59 |
||
