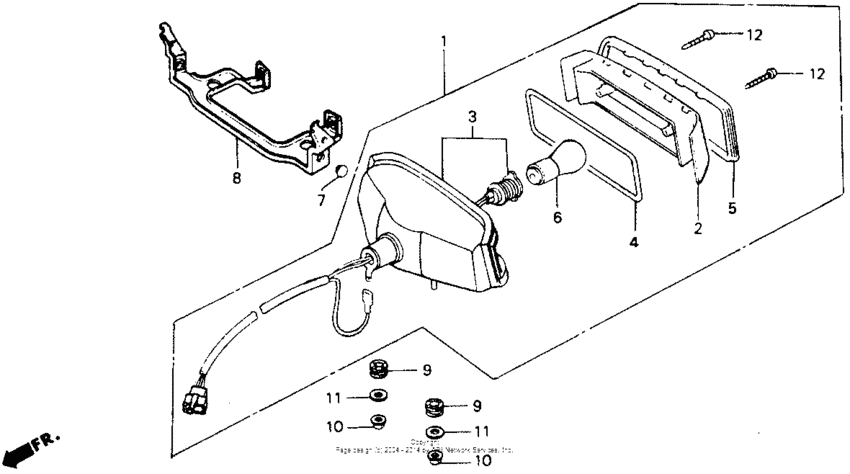

Taillight Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33701-KC1-920
Taillight unit
|
33701-KC1-920 |
— | ||
|
2
|
2
33702-KC1-003 Lens,taillight |
33702-KC1-003 |
US $33.65 |
||
|
3
|
3
33703-KC1-013 Base comp.,tail l |
33703-KC1-013 |
US $21.37 |
||
|
4
|
4
33709-KC1-003 Packing,taillight |
33709-KC1-003 |
US $4.25 |
||
|
5
|
5
33718-KC1-003 Rubber,taillight |
33718-KC1-003 |
US $9.90 |
||
|
6
|
6
34906-425-771 Bulb (12v27/8w) |
34906-425-771 |
from US $4.14 |
||
|
7
|
7
40514-377-000 Plug, chain case |
40514-377-000 |
from US $2.16 |
||
|
8
|
8
50457-KC1-000 Stay,taillight |
50457-KC1-000 |
US $18.19 |
||
|
9
|
9
84703-KC1-000 Rub,taillight mtg |
84703-KC1-000 |
from US $3.11 |
||
|
10
|
10
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
11
|
11
90563-355-000 Washer, wheel, 6mm |
90563-355-000 |
from US $2.22 |
||
|
12
|
12
9390134780 Screw, tap (4x30) |
9390134780 |
from US $0.37 |
