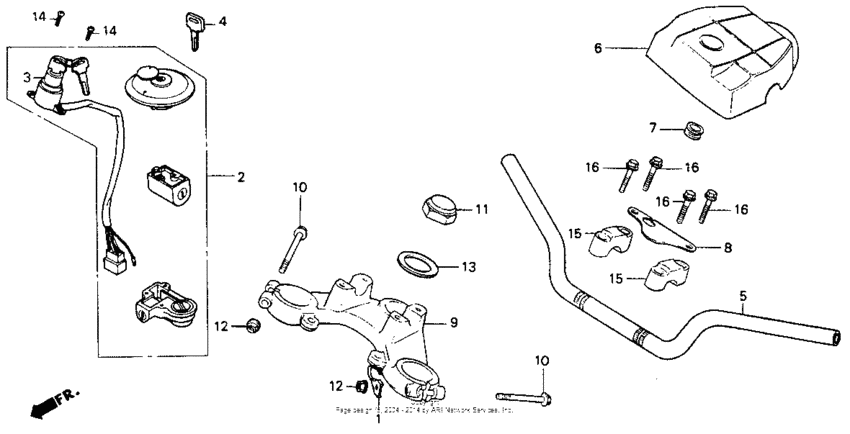

Top bridge Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17908-MM5-000 Guide, cable |
17908-MM5-000 |
US $6.65 |
||
|
2
|
2
35010-KC1-921 Lock setUse up to Frame SN LK001269 |
35010-KC1-921 |
US $222.31 |
||
|
3
|
3
35100-KC1-702
Sw assy.,comb
Use up to Frame SN LK001269 |
35100-KC1-702 |
— | ||
|
4
|
4
35121-GZ5-003 Key, blank (type1)(Optional). |
35121-GZ5-003 |
from US $8.73 |
||
| replacement | |||||
|
4
|
4
35121-GE2-770 Key, blank (type1)(Optional). |
35121-GE2-770 |
from US $10.21 |
||
|
4
|
4
35122-GZ5-003 Key, blank (type2)(Optional). |
35122-GZ5-003 |
from US $8.73 |
||
| replacement | |||||
|
4
|
4
35122-GE2-770 Key, blank (type2)(Optional). |
35122-GE2-770 |
from US $10.21 |
||
|
5
|
5
53100-KC1-920
Handlebar
|
53100-KC1-920 |
— | ||
|
6
|
6
53132-KC1-670 Cover, ignition |
53132-KC1-670 |
US $26.98 |
||
|
7
|
7
53133-KB4-000 Grommet |
53133-KB4-000 |
from US $2.29 |
||
|
8
|
8
53134-KC1-000 Stay,ignition cov |
53134-KC1-000 |
US $10.22 |
||
|
9
|
9
53231-402-700 Bridge,forktop |
53231-402-700 |
from US $107.44 |
||
|
10
|
10
90155-369-000 Bolt,flange,7x54 |
90155-369-000 |
from US $6.81 |
||
|
11
|
11
90304-GM2-000 Nut,strg stem |
90304-GM2-000 |
from US $4.59 |
||
|
12
|
12
90355-369-000 Nut, flange, 7mm |
90355-369-000 |
from US $5.33 |
||
|
13
|
13
90503-166-010 Washer |
90503-166-010 |
US $2.59 |
||
|
14
|
14
93500-060120G Screw, pan, 6x12 |
93500-060120G |
from US $0.44 |
||
|
15
|
15
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
||
|
16
|
16
95701-080-350-0 BoltFLANGE, 8X35 |
95701-080-350-0 |
from US $0.74 |
||
