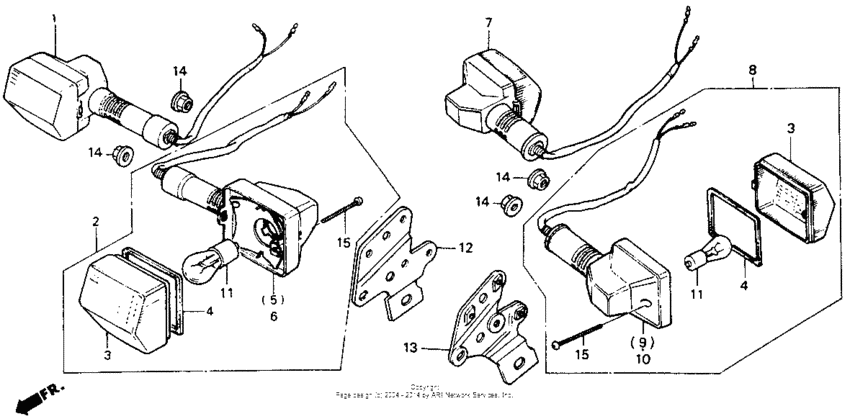

Turn signal Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33300-KC1-920 Turn signal assy. |
33300-KC1-920 |
US $58.17 |
||
|
2
|
2
33350-KC1-920
Turn signal assy.
|
33350-KC1-920 |
— | ||
|
3
|
3
33402-MGW-305 Lens, turn signal |
33402-MGW-305 |
from US $11.04 |
||
|
4
|
4
33407-MG2-003 Gasket, lens |
33407-MG2-003 |
from US $3.42 |
||
|
5
|
5
33420-KC1-920 Base, r. fr. |
33420-KC1-920 |
from US $56.74 |
||
|
6
|
6
33470-KC1-920 Base, l. fr. |
33470-KC1-920 |
from US $56.74 |
||
|
7
|
7
33500-KC1-407
Turn signal set, r.
|
33500-KC1-407 |
— | ||
|
8
|
8
33500-KC1-407
Turn signal set, r.
|
33500-KC1-407 |
— | ||
|
9
|
9
33620-KC1-920 Base, r. rr. |
33620-KC1-920 |
from US $56.88 |
||
|
10
|
10
33670-KC1-920 Base, l. rr. |
33670-KC1-920 |
from US $56.88 |
||
|
11
|
11
34905-268-671 Bulb (12v23w32cp) |
34905-268-671 |
from US $3.26 |
||
|
12
|
12
50230-KC1-700 Bracket,r.rr.wink |
50230-KC1-700 |
from US $19.16 |
||
|
13
|
13
50235-KC1-700 Bracket,l.rr.wink |
50235-KC1-700 |
from US $19.16 |
||
|
14
|
14
90308-KE1-000 Nut, flange (10mm) |
90308-KE1-000 |
from US $4.47 |
||
|
15
|
15
91901-MG2-003 Screw, tap (3x25) |
91901-MG2-003 |
from US $1.92 |
