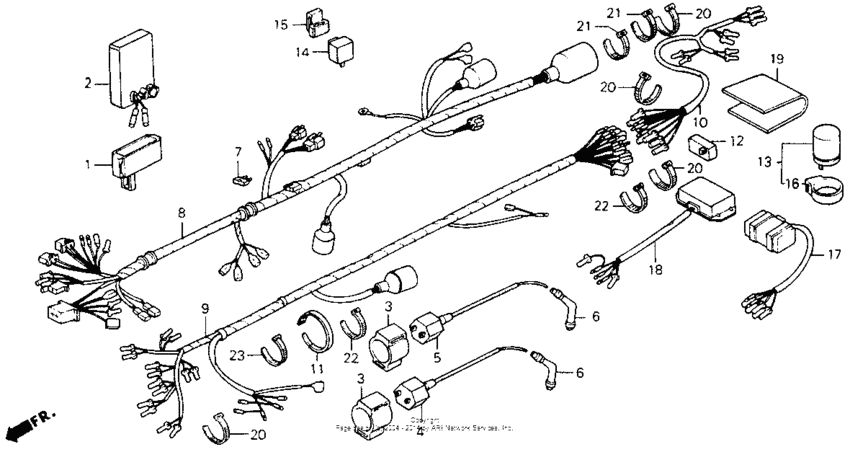

Wire harness Diagram Honda CB125
- Year
- 1990
- Model code
- CB125TT A
- Sales region
- USA
- Frame
- JH2JC063*LK000001 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-HE0-000 Cushion, c.d.i. unit |
30401-HE0-000 |
US $9.03 |
||
|
2
|
2
30410-KC1-921
Module, ign cont
|
30410-KC1-921 |
— | ||
|
3
|
3
30506-KV3-771 Suspension, ignition coil |
30506-KV3-771 |
from US $4.68 |
||
|
4
|
4
30510-KT0-405 Coil, ignition |
30510-KT0-405 |
from US $36.85 |
||
|
5
|
5
30510-KT0-405 Coil, ignition |
30510-KT0-405 |
from US $36.85 |
||
|
6
|
6
30700-GAR-000 Cap assy. |
30700-GAR-000 |
from US $16.86 |
||
|
7
|
7
31700-196-000 Rectifier comp., silicon |
31700-196-000 |
from US $21.08 |
||
|
8
|
8
32100-KC1-920
Wire harness
|
32100-KC1-920 |
— | ||
|
9
|
9
32101-KC1-920
Sub-wire harness a
|
32101-KC1-920 |
— | ||
|
10
|
10
32103-KC1-920
Sub-harness c
|
32103-KC1-920 |
— | ||
|
11
|
11
32161-402-000 Band,wire |
32161-402-000 |
US $5.62 |
||
|
12
|
12
36100-KC1-920
Relay, engine stop
|
36100-KC1-920 |
— | ||
|
13
|
13
38300-388-711 Relay, change lamp |
38300-388-711 |
from US $58.53 |
||
|
14
|
14
38301-KJ6-743 Relay, turn signal |
38301-KJ6-743 |
US $73.93 |
||
| replacement | |||||
|
14
|
14
38301-KG0-024 Relay, turn signal |
38301-KG0-024 |
from US $49.10 |
||
|
15
|
15
38306-KJ6-740 Suspension |
38306-KJ6-740 |
from US $4.29 |
||
|
16
|
16
38306-292-000 Suspension |
38306-292-000 |
from US $4.07 |
||
|
17
|
17
38550-388-711 Warning unit, speed |
38550-388-711 |
US $323.27 |
||
|
18
|
18
38800-KC1-920
Indicator unit
|
38800-KC1-920 |
— | ||
|
19
|
19
50241-KC1-830 Rubber |
50241-KC1-830 |
from US $9.70 |
||
|
20
|
20
90650-KV6-003 BandWIRE, 95MM |
90650-KV6-003 |
from US $3.03 |
||
|
21
|
21
90650-KW3-000 Band, wire |
90650-KW3-000 |
from US $2.89 |
||
|
22
|
22
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $2.96 |
||
|
23
|
23
91406-166-000 Clip, wire |
91406-166-000 |
from US $3.83 |
||
