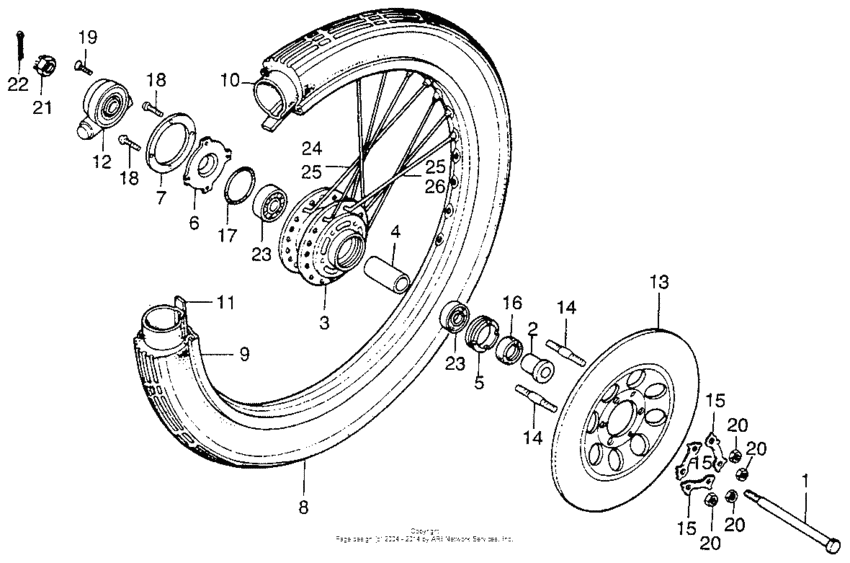

Front wheel Diagram Honda CB200
- Model code
- CB200T A
- Sales region
- USA
- Frame
- CB200T2000001 -
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44301-304-971
Axle,front wheel
|
44301-304-971 |
— | ||
|
2
|
2
44321-351-700
Collar,fr.side
|
44321-351-700 |
— | ||
|
3
|
3
44611-351-700
Hub, fr. wheel
|
44611-351-700 |
— | ||
|
4
|
4
44620-286-000
Collar,distance
|
44620-286-000 |
— | ||
|
5
|
5
44643-300-000 Retainer fr wheel |
44643-300-000 |
from US $14.06 |
||
|
6
|
6
44680-351-700
Box,retainer gear
|
44680-351-700 |
— | ||
|
7
|
7
44691-351-700
Cover,gear box
|
44691-351-700 |
— | ||
|
8
|
8
44711-315-009
Tire, fr. (2.75-18)
Use up to Frame SN 2028160 |
44711-315-009 |
— | ||
|
9
|
9
44701-317-701
Rim,front wheel
Use up to Frame SN 2028160 |
44701-317-701 |
— | ||
|
10
|
10
44712-150-005
Tube,tire
|
44712-150-005 |
— | ||
| replacement | |||||
|
10
|
10
42712-KC6-005
Tube (275/300-18)
|
42712-KC6-005 |
— | ||
|
11
|
11
42713-268-003
Flap,x-18a
Use up to Frame SN 2028160 |
42713-268-003 |
— | ||
| replacement | |||||
|
11
|
11
42713-304-003 Flap (1.40/1.60-18)Use up to Frame SN 2028160 |
42713-304-003 |
US $9.78 |
||
|
11
|
11
42713-304-003 Flap (1.40/1.60-18)Use from Frame SN 2028161 |
42713-304-003 |
US $9.78 |
||
|
12
|
12
44800-354-701
Box.,spdmt.geear
|
44800-354-701 |
— | ||
|
13
|
13
45251-351-700
Disk,front brake
|
45251-351-700 |
— | ||
|
14
|
14
90135-107-720 Bolt, stud (6x28) |
90135-107-720 |
from US $2.89 |
||
|
15
|
15
90522-351-700
Washer,6mm
|
90522-351-700 |
— | ||
|
16
|
16
91252-300-003 Dust,seal |
91252-300-003 |
from US $13.28 |
||
|
17
|
17
91304-250-015
O-ring, 47mm
|
91304-250-015 |
— | ||
|
18
|
18
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
19
|
19
93600-050-200-A ScrewFLAT, 5X20 |
93600-050-200-A |
from US $0.37 |
||
|
20
|
20
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
21
|
21
94011-140-200-S
Nut,castle 14mm
|
94011-140-200-S |
— | ||
|
22
|
22
94201-30250 PinSPLIT, 3.0X25 |
94201-30250 |
from US $0.44 |
||
| replacement | |||||
|
22
|
22
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
22
|
22
9420130280 Pin, split, 3.0x28 |
9420130280 |
US $0.44 |
||
|
22
|
22
9420130450 Pin, cotter (3.0x45) |
9420130450 |
from US $0.44 |
||
|
23
|
23
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
|
24
|
24
97394-522-411-0
Spoke b,9x200.5
|
97394-522-411-0 |
— | ||
|
26
|
26
97718-522-401-0
Spoke b,9x200
|
97718-522-401-0 |
— | ||
