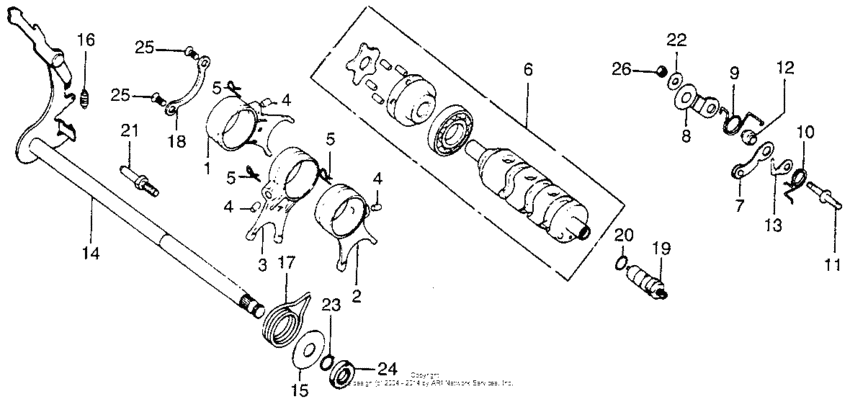

Gearshift fork + drum Diagram Honda CB200
- Model code
- CB200T A
- Sales region
- USA
- Frame
- CB200T2000001 -
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-354-000
Fork,r gear shift
|
24211-354-000 |
— | ||
|
2
|
2
24221-235-000
Fork,l,gear.shift
|
24221-235-000 |
— | ||
|
3
|
3
24231-235-000
Fork,conter,gear,
|
24231-235-000 |
— | ||
|
4
|
4
24261-283-000 Pin |
24261-283-000 |
from US $4.22 |
||
|
5
|
5
24263-283-000
Clip,guide pin
|
24263-283-000 |
— | ||
|
6
|
6
24300-354-000
Drum.,gear.shift
|
24300-354-000 |
— | ||
|
7
|
7
24420-354-000
Arm.,neutral stop
|
24420-354-000 |
— | ||
|
8
|
8
24430-302-010
Stopper,shiftdrum
|
24430-302-010 |
— | ||
|
9
|
9
24435-302-000
Spring,stopper
|
24435-302-000 |
— | ||
|
10
|
10
24436-315-000
Spring,neutral
|
24436-315-000 |
— | ||
|
11
|
11
24437-302-000
Pin,drum stopper
|
24437-302-000 |
— | ||
|
12
|
12
24438-302-000 Collar,stopper |
24438-302-000 |
US $7.12 |
||
|
13
|
13
24439-302-000 Plate,stopper arm |
24439-302-000 |
US $4.18 |
||
|
14
|
14
24610-302-020
Spindle,gear
|
24610-302-020 |
— | ||
|
15
|
15
24621-200-000
Stopper, spindle
|
24621-200-000 |
— | ||
|
16
|
16
24641-216-000 Spring |
24641-216-000 |
from US $2.80 |
||
|
17
|
17
24651-235-000
Spring,return
|
24651-235-000 |
— | ||
|
18
|
18
24710-235-000
Plate,bearing set
|
24710-235-000 |
— | ||
|
19
|
19
35750-333-023
Switch,neutral
|
35750-333-023 |
— | ||
|
20
|
20
35751-333-003
O-ring
|
35751-333-003 |
— | ||
|
21
|
21
90015-286-000
Pin,return spring
|
90015-286-000 |
— | ||
|
22
|
22
90417-302-000
Washer,shift,drum
|
90417-302-000 |
— | ||
|
23
|
23
90603-200-000
Set ring, 12mm
Use up to Engine SN 2029854 |
90603-200-000 |
— | ||
|
23
|
23
94510-12000 CirclipEXTERNAL, 12MM Use from Engine SN 2029855 |
94510-12000 |
from US $0.44 |
||
|
24
|
24
91202-426-003 Oilseal,12x25x4.5 |
91202-426-003 |
from US $5.92 |
||
|
25
|
25
93600-060-120-A ScrewFLAT, 6X12 |
93600-060-120-A |
from US $0.44 |
||
|
26
|
26
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
