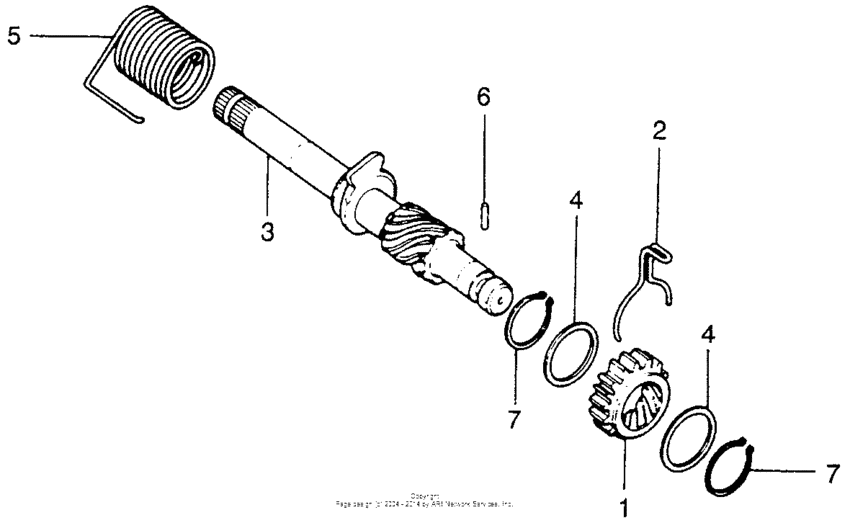

Kick starter spindle Diagram Honda CB200
- Model code
- CB200T A
- Sales region
- USA
- Frame
- CB200T2000001 -
- Engine Capacity
- 200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28211-235-020
Pinion,kick
|
28211-235-020 |
— | ||
|
2
|
2
28239-235-000
Spring,friction
|
28239-235-000 |
— | ||
|
3
|
3
28250-235-000
Spindle,starter
|
28250-235-000 |
— | ||
|
4
|
4
28252-235-000
Washer,spindle
|
28252-235-000 |
— | ||
|
5
|
5
28261-235-000
Spring,kick
|
28261-235-000 |
— | ||
|
6
|
6
90701-216-000
Pin, knock, 4x15
|
90701-216-000 |
— | ||
|
7
|
7
9451025000 Circlip, external, 25mm |
9451025000 |
from US $0.59 |
