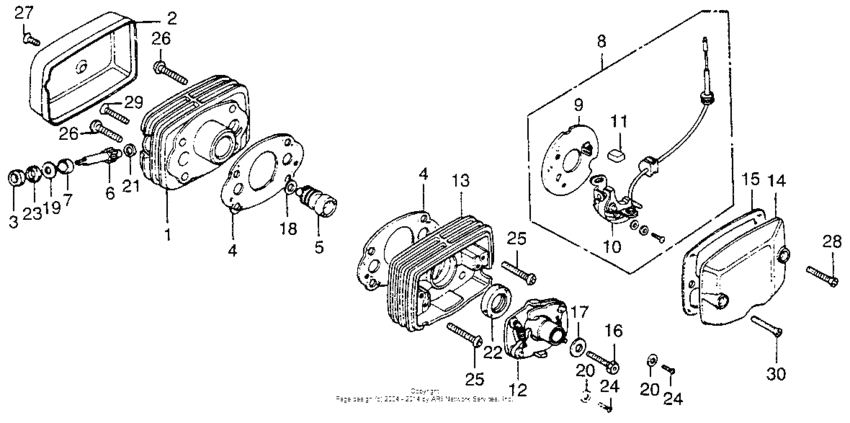

Points Diagram Honda CB200
- Model code
- CB200T A
- Sales region
- USA
- Frame
- CB200T2000001 -
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12330-354-000
Cvr, r. cyl hd side
|
12330-354-000 |
— | ||
|
2
|
2
12332-354-000
Cover, tachometer
|
12332-354-000 |
— | ||
|
3
|
3
12339-306-000
Grommet, tach cbl
|
12339-306-000 |
— | ||
|
4
|
4
12394-216-306
Gskt, r. cyl hd cvr
|
12394-216-306 |
— | ||
|
5
|
5
12421-338-000
Gear
|
12421-338-000 |
— | ||
|
6
|
6
12431-246-000
Gear, tachometer
|
12431-246-000 |
— | ||
|
7
|
7
12435-246-000
Collar
|
12435-246-000 |
— | ||
|
8
|
8
30200-235-154
Breaker,contact
|
30200-235-154 |
— | ||
|
9
|
9
30201-235-004
Plate,breaker
|
30201-235-004 |
— | ||
|
9
|
9
30201-235-015
Plate,breaker
|
30201-235-015 |
— | ||
|
10
|
10
30202-107-004 Breaker,contact |
30202-107-004 |
from US $49.64 |
||
|
10
|
10
30202-107-154 Breaker,contact |
30202-107-154 |
US $34 |
||
|
10
|
10
30202-216-005
Breaker,contact
|
30202-216-005 |
— | ||
|
11
|
11
30205-216-004
Felt, oil
|
30205-216-004 |
— | ||
|
11
|
11
30205-216-005
Felt, oil
|
30205-216-005 |
— | ||
|
12
|
12
30220-354-154
Advancer,spark
|
30220-354-154 |
— | ||
|
13
|
13
30361-354-000
Base,point
|
30361-354-000 |
— | ||
|
14
|
14
30371-354-000 Cover,point |
30371-354-000 |
US $69.11 |
||
|
15
|
15
30391-354-306
Gasket, points cover
|
30391-354-306 |
— | ||
|
16
|
16
90001-235-000
Bolt,setting 5x20
|
90001-235-000 |
— | ||
|
17
|
17
90544-594-000
Washer,tail light
|
90544-594-000 |
— | ||
|
18
|
18
90401-819-000
Washer,6m/m
Use up to Engine SN 2022899 |
90401-819-000 |
— | ||
|
18
|
18
90457-333-000
Washer,12mm
Use from Engine SN 2022900 |
90457-333-000 |
— | ||
|
19
|
19
90458-286-000
Washer thrust
|
90458-286-000 |
— | ||
|
20
|
20
30903-216-000
Washer, lock
|
30903-216-000 |
— | ||
|
20
|
20
90482-028-000 Washer, 5mm |
90482-028-000 |
from US $2.22 |
||
|
21
|
21
90539-011-000
Washer, pinion
|
90539-011-000 |
— | ||
|
22
|
22
91204-216-003 Oil seal (20x35x55) |
91204-216-003 |
from US $7.84 |
||
|
23
|
23
91256-096-651 Oil seal,4.8x14.5 |
91256-096-651 |
from US $3.27 |
||
|
24
|
24
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
25
|
25
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
26
|
26
93500-060-200-A ScrewPAN, 6X20 |
93500-060-200-A |
from US $0.44 |
||
|
27
|
27
93700-050-100-A
Screw cross 5x10
|
93700-050-100-A |
— | ||
|
28
|
28
93700-050200A Screw, oval (5x20) |
93700-050200A |
from US $0.37 |
||
|
29
|
29
93700-050-220-A Screw,oval,5x22 |
93700-050-220-A |
US $0.44 |
||
|
30
|
30
93700-050-280-A
Screw,cross 5x28
|
93700-050-280-A |
— |
