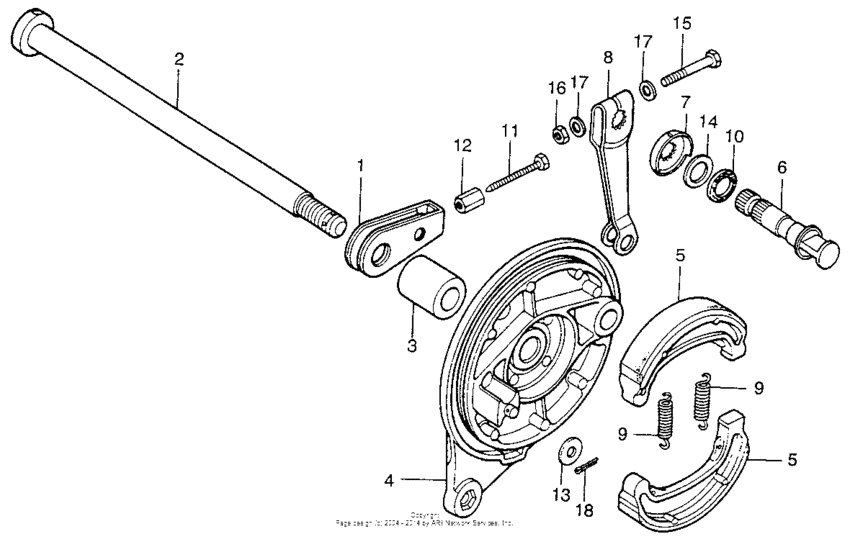

Rear brake panel Diagram Honda CB200
- Model code
- CB200T A
- Sales region
- USA
- Frame
- CB200T2000001 -
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40543-216-000
Adjuster, chain
|
40543-216-000 |
— | ||
|
2
|
2
42301-316-671
Axle, rr. wheel
|
42301-316-671 |
— | ||
|
3
|
3
42313-216-000
Collar, panel
|
42313-216-000 |
— | ||
|
4
|
4
43110-354-010
Panel, rr. brake
|
43110-354-010 |
— | ||
|
5
|
5
43120-354-405
*06430-354-405
|
43120-354-405 |
— | ||
|
6
|
6
43141-362-000
Cam, rr. brake
|
43141-362-000 |
— | ||
|
7
|
7
43145-369-000
Plate,indicator
|
43145-369-000 |
— | ||
|
8
|
8
43410-333-670
Arm,rear brake
|
43410-333-670 |
— | ||
|
9
|
9
45133-329-000 Spring, fr. brake shoe |
45133-329-000 |
from US $3.26 |
||
|
10
|
10
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.22 |
||
|
11
|
11
90119-258-000 Bolt,chain adjust |
90119-258-000 |
from US $5.48 |
||
|
12
|
12
90282-329-000 Nut, 6x15 |
90282-329-000 |
from US $6.36 |
||
|
13
|
13
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
14
|
14
90549-121-000
Washer,plain 14mm
|
90549-121-000 |
— | ||
|
15
|
15
92000-06036 Bolt,hex 6x36 |
92000-06036 |
from US $0.52 |
||
| replacement | |||||
|
15
|
15
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
15
|
15
92201-06035-0A Bolt, hex. (6x35) |
92201-06035-0A |
from US $0.52 |
||
|
16
|
16
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
17
|
17
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
18
|
18
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
18
|
18
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
18
|
18
9420120350 Pin, cotter (2.0x35) |
9420120350 |
US $1.48 |
||
|
18
|
18
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
18
|
18
9420120350 Pin, cotter (2.0x35) |
9420120350 |
US $1.48 |
||
