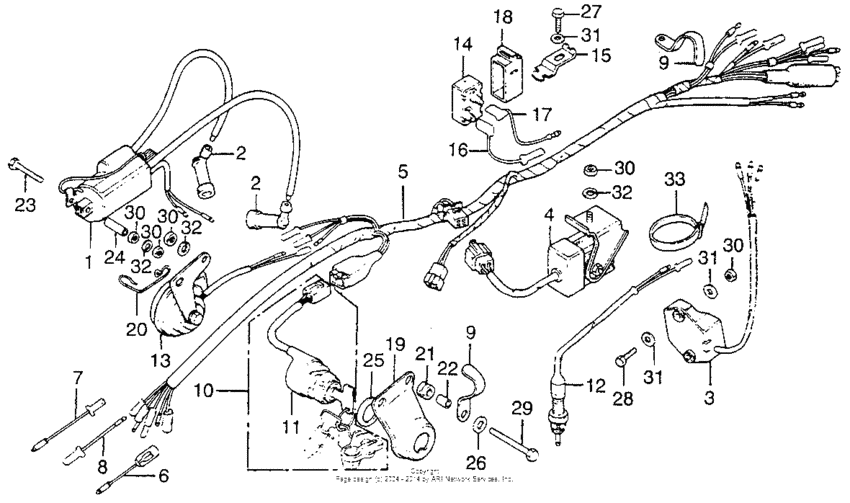

Wire harness + ignition coil Diagram Honda CB200
- Model code
- CB200T A
- Sales region
- USA
- Frame
- CB200T2000001 -
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30400-306-673
Coil,ignition
|
30400-306-673 |
— | ||
|
2
|
2
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
3
|
3
31400-292-670
Pointless
|
31400-292-670 |
— | ||
|
4
|
4
31700-351-008
Rectifier,selen
|
31700-351-008 |
— | ||
|
5
|
5
32100-351-000
Harness,wire
|
32100-351-000 |
— | ||
|
6
|
6
32103-230-810
Sub-wire a
|
32103-230-810 |
— | ||
|
7
|
7
32104-389-670
Sub-wire a
|
32104-389-670 |
— | ||
|
8
|
8
32105-389-670
Sub-wire b
|
32105-389-670 |
— | ||
|
9
|
9
32172-336-000
Clip,wire harness
|
32172-336-000 |
— | ||
|
10
|
10
35010-374-671 Key set |
35010-374-671 |
from US $194.45 |
||
|
11
|
11
35100-374-007
Switch,comb.
|
35100-374-007 |
— | ||
|
12
|
12
35350-KJ9-405 Switch assy.,rr.s |
35350-KJ9-405 |
from US $17 |
||
|
13
|
13
38100-354-004
Horn assy
|
38100-354-004 |
— | ||
|
14
|
14
38301-KJ6-743 Relay, turn signal |
38301-KJ6-743 |
US $73.93 |
||
| replacement | |||||
|
14
|
14
38301-KG0-024 Relay, turn signal |
38301-KG0-024 |
from US $49.10 |
||
|
15
|
15
38301-315-670
Stay
|
38301-315-670 |
— | ||
|
16
|
16
38304-292-670
Sub-wire a
|
38304-292-670 |
— | ||
|
17
|
17
38305-292-670
Sub-wire b
|
38305-292-670 |
— | ||
|
18
|
18
38306-292-670
Suspension,relay
|
38306-292-670 |
— | ||
|
19
|
19
50375-303-010-B
Bracket,main,sw
|
50375-303-010-B |
— | ||
|
20
|
20
50402-351-000
Clip,tach.cable
|
50402-351-000 |
— | ||
|
21
|
21
80101-283-000 Rubber, rr. fender cushion |
80101-283-000 |
from US $4.44 |
||
|
22
|
22
84706-286-000 Collar no bracket |
84706-286-000 |
from US $2.74 |
||
|
23
|
23
90171-303-000
Bolt,ign,coil set
|
90171-303-000 |
— | ||
|
24
|
24
90301-303-000
Nut,ignition coil
|
90301-303-000 |
— | ||
|
25
|
25
90501-374-007
Washer (25x33)
|
90501-374-007 |
— | ||
|
26
|
26
90525-030-000 Washer b, handle holder setting |
90525-030-000 |
from US $2.59 |
||
|
27
|
27
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
27
|
27
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
27
|
27
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
28
|
28
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
29
|
29
92101-06045-0A Bolt, hex. (6x45) |
92101-06045-0A |
from US $0.59 |
||
|
30
|
30
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
31
|
31
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
32
|
32
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
33
|
33
9501462300 Band b3, wire |
9501462300 |
from US $1.55 |
||
