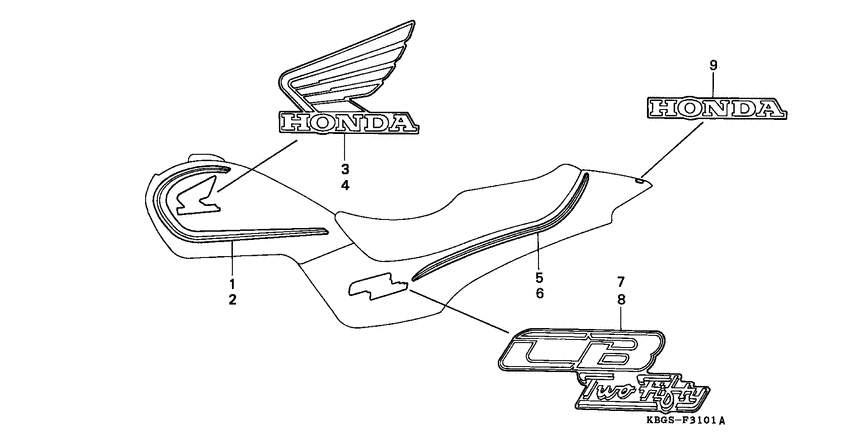

Stripe/mark (2) Diagram Honda CB250 Two Fifty
- Year
- 1994
- Model code
- CB250R
- Sales region
- Spain
- Frame
- VTMMC26B00E000004 - VTMMC26B00E000301
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17507-KBG-830ZA
Stripe r fuel tank t
|
17507-KBG-830ZA |
— | ||
|
1
|
1
17507-KBG-830ZB
Stripe r fuel tank t
|
17507-KBG-830ZB |
— | ||
|
1
|
1
17507-KBG-830ZC
Stripe r fuel tank t
|
17507-KBG-830ZC |
— | ||
|
2
|
2
17508-KBG-830ZA
Stripe l fuel tank t
|
17508-KBG-830ZA |
— | ||
|
2
|
2
17508-KBG-830ZB
Stripe l fuel tank t
|
17508-KBG-830ZB |
— | ||
|
2
|
2
17508-KBG-830ZC
Stripe l fuel tank t
|
17508-KBG-830ZC |
— | ||
|
3
|
3
17531-KBG-830ZA
Mark wing r tank t1
|
17531-KBG-830ZA |
— | ||
|
3
|
3
17531-KBG-830ZB
Wing mark,*type2*
|
17531-KBG-830ZB |
— | ||
|
3
|
3
17531-KBG-830ZC
Mark wing r tank t3
|
17531-KBG-830ZC |
— | ||
|
4
|
4
17532-KBG-830ZA
Mark wing l tank t1
|
17532-KBG-830ZA |
— | ||
|
4
|
4
17532-KBG-830ZB
Wing mark,*type2*
|
17532-KBG-830ZB |
— | ||
|
4
|
4
17532-KBG-830ZC
Mark wing l tank t3
|
17532-KBG-830ZC |
— | ||
|
5
|
5
83541-KBG-830ZA
Stripe r side cover
|
83541-KBG-830ZA |
— | ||
|
5
|
5
83541-KBG-830ZB
Stripe r side cover
|
83541-KBG-830ZB |
— | ||
|
5
|
5
83541-KBG-830ZC
Stripe r side cover
|
83541-KBG-830ZC |
— | ||
|
6
|
6
83641-KBG-830ZA
Stripe l side cover
|
83641-KBG-830ZA |
— | ||
|
6
|
6
83641-KBG-830ZB
Stripe l side cover
|
83641-KBG-830ZB |
— | ||
|
6
|
6
83641-KBG-830ZC
Stripe l side cover
|
83641-KBG-830ZC |
— | ||
|
7
|
7
83650-KBG-830ZA
Mark side cover t1
|
83650-KBG-830ZA |
— | ||
|
7
|
7
83650-KBG-830ZB
Mark side cover t2
|
83650-KBG-830ZB |
— | ||
|
7
|
7
83650-KBG-830ZC
Mark side cover t3
|
83650-KBG-830ZC |
— | ||
|
8
|
8
83750-KBG-830ZA
Mark,l sid*type1*
|
83750-KBG-830ZA |
— | ||
|
8
|
8
83750-KBG-830ZB
Mark,l sid*type2*
|
83750-KBG-830ZB |
— | ||
|
8
|
8
83750-KBG-830ZC
Mark,l sid*type3*
|
83750-KBG-830ZC |
— | ||
|
9
|
9
83801-KBG-770ZA Mark,rr.ce*type1* |
83801-KBG-770ZA |
US $6.07 |
